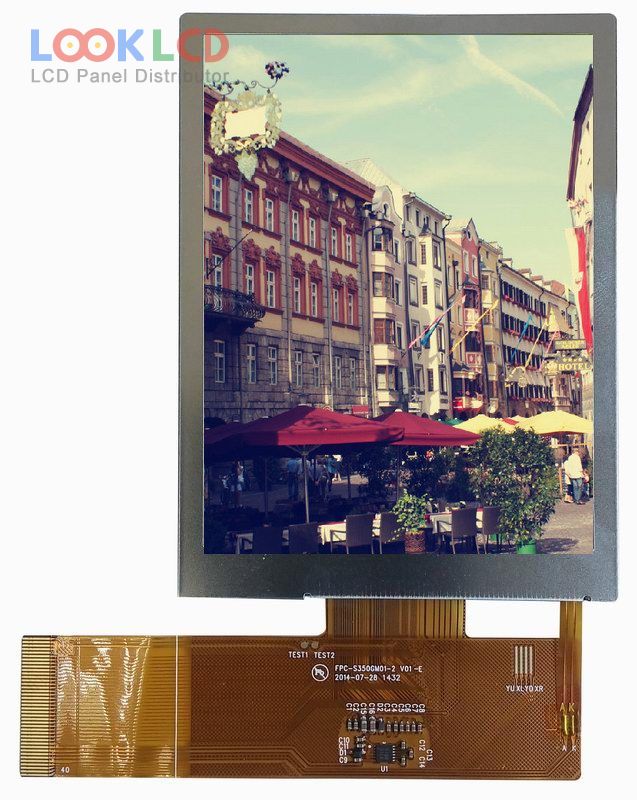

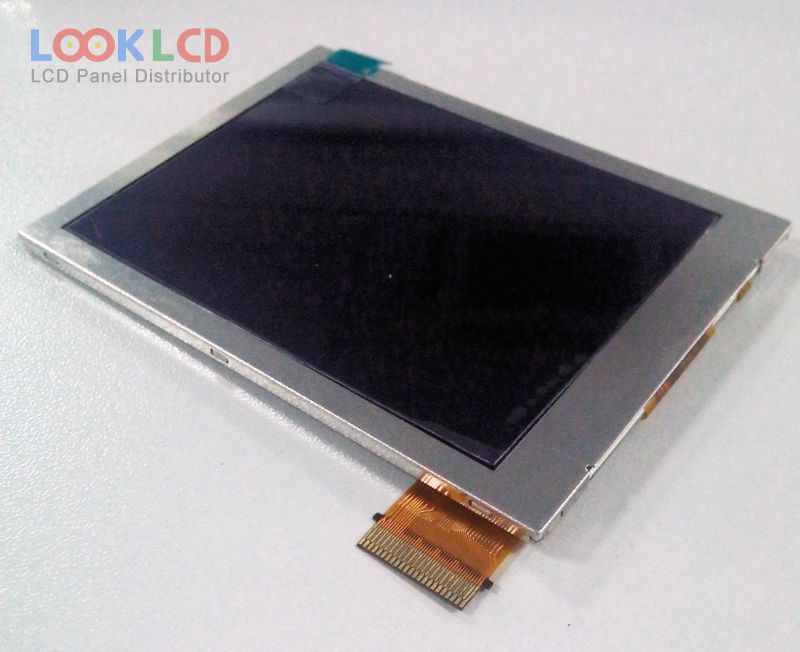

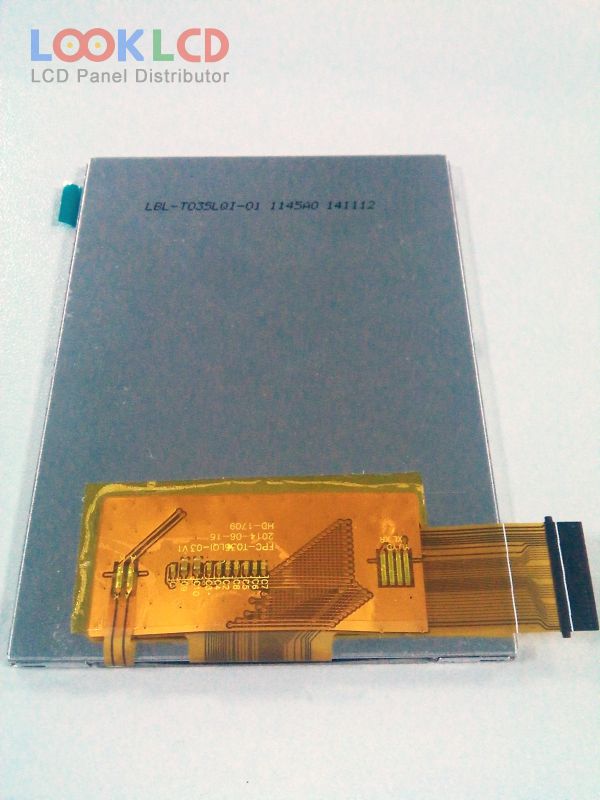

| Varenummer | DLC0350TZG |
| Mærke | Other |
| Størrelse | 3.5 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | DLC |
| panel model | DLC0350TZG |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 53.64×71.52 mm |
| omrids | 63.5×85.5×3 mm |
| overflade | Hard coating |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193140% |
| responstid | 10/10 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/60/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | MPH |
