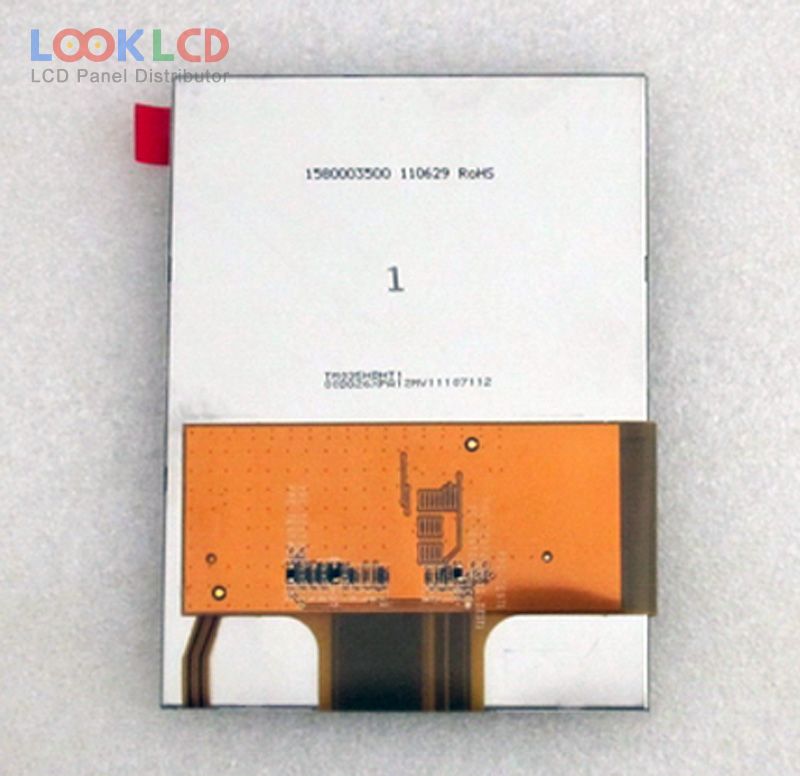

| Varenummer | TM035HDHT1 |
| Mærke | Tianma |
| Størrelse | 3.5 |
| Ansøgning | HHP |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 100 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | TIANMA |
| panel model | TM035HDHT1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | ECB, Normally White, Transflective |
| aktivt område | 53.64×71.52 mm |
| omrids | 64×85×3.13 mm |
| overflade | Hard coating |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.)(Transmissive)2.5:1 (Typ.)(Reflective) |
| vise farver | 262K (6-bit), CIE193135% |
| responstid | 35 (Typ.)(Tr+Td) |
| synsvinkel | 40/45/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit) + SPI, 50 pins |
| indgangsspænding | 2.8/15/-10V (Typ.)(VCC/VGH/VGL) |
| Ansøgning | HHP |
