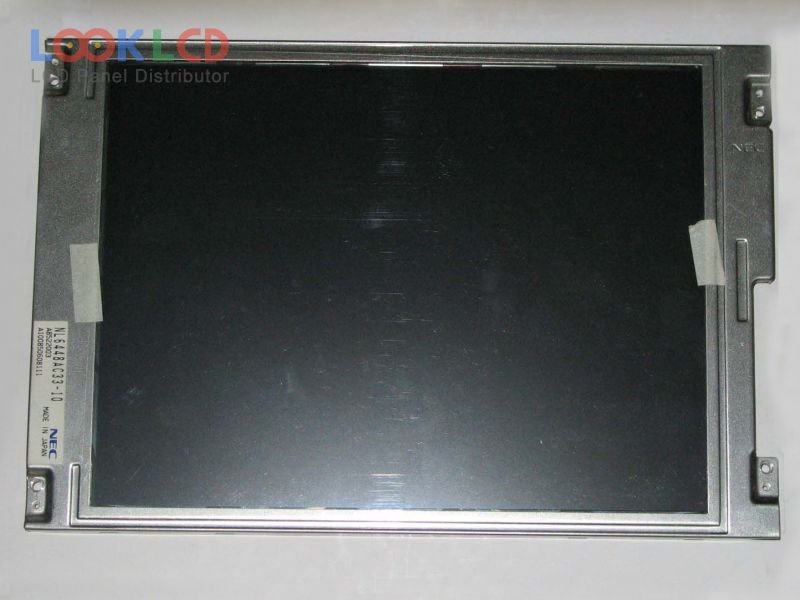

| Varenummer | NL6448AC33-10 |
| Mærke | NLT |
| Størrelse | 10.4 |
| Ansøgning | NBPC |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 90 |
| CR | 150:1 |
| Farver | 4096 |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL6448AC33-10 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.4 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| omrids | 270×183×13 mm |
| overflade | |
| lysstyrke | 90 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.) |
| vise farver | 4096 (4-bit), CIE193155% |
| responstid | 40 (Max.)(Tr) |
| synsvinkel | 45/45/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLEmbedded (Inverter) |
| signal interface | CMOS (1 ch, 4-bit), 34 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | NBPC |
