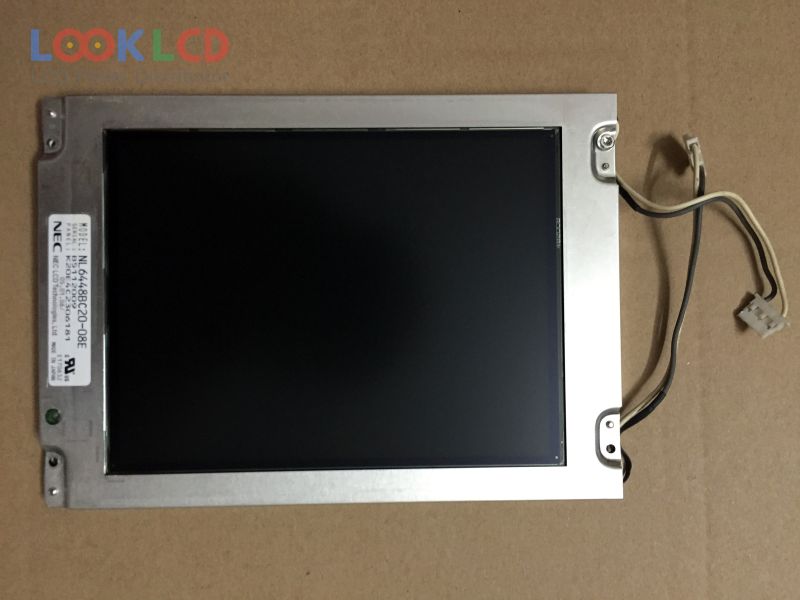

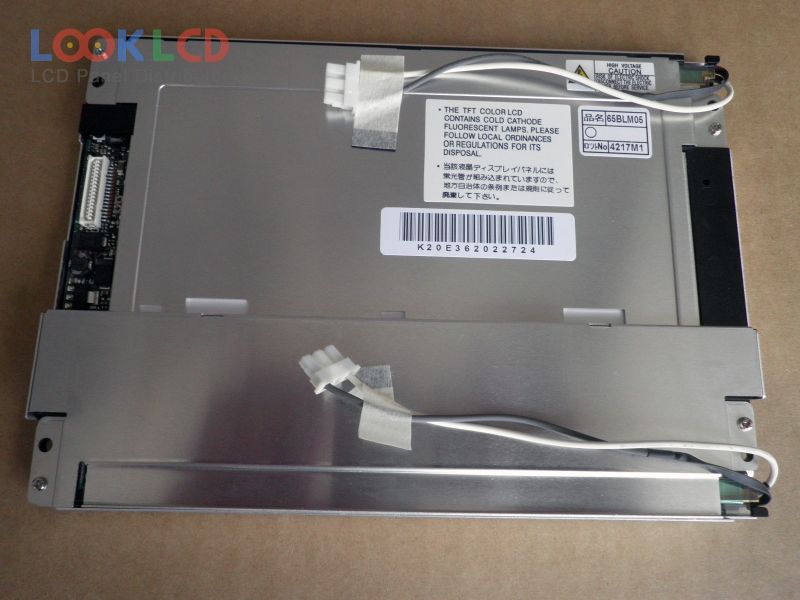

| Varenummer | NL6448BC20-08E |
| Mærke | NLT |
| Størrelse | 6.5 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | NEC |
| panel model | NL6448BC20-08E |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.5 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 132.48×99.36 mm |
| omrids | 178.8×126.8 mm |
| overflade | Antiglare (Haze 16%), Hard coating (2H), Antireflection |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193142% |
| responstid | 13/36 (Typ.)(Tr/Td) |
| synsvinkel | 50/50/35/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2 pcsCCFLWithout Driver |
| signal interface | Parallel RGB, 31 pins |
| indgangsspænding | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| Ansøgning | IA |
