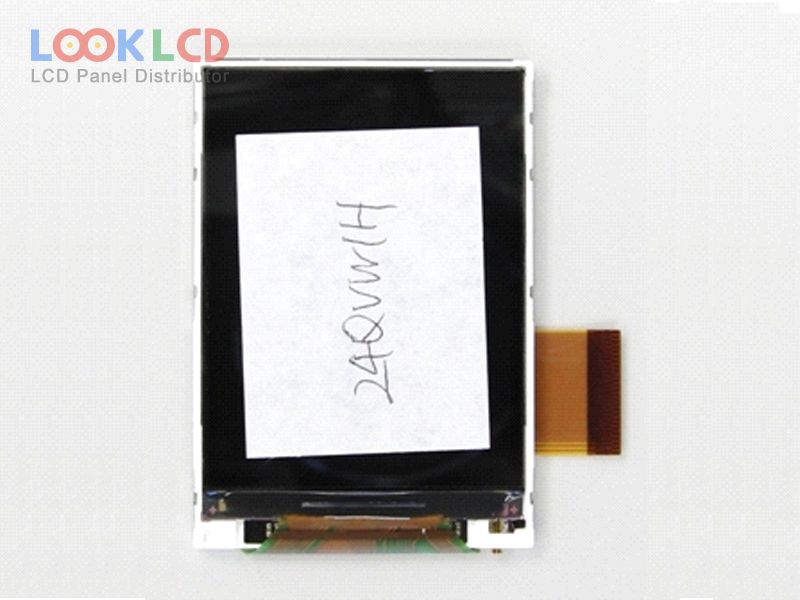

| Varenummer | 24QVW1H |
| Mærke | SII |
| Størrelse | 2.4 |
| Ansøgning | HHP |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | SII |
| panel model | 24QVW1H |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.4 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 36.72×48.96 mm |
| omrids | 42.06×60.26 mm |
| overflade | Clear, Hard coating |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S1PWLED |
| signal interface | CPU, 51 pins |
| Ansøgning | HHP |
