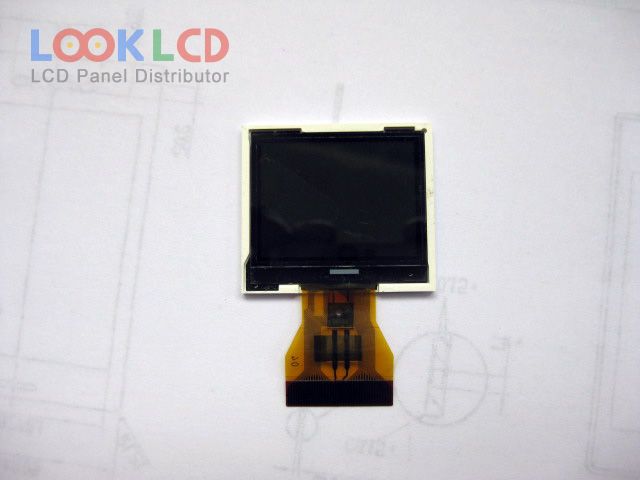

| Varenummer | TD015THEB2 |
| Mærke | TPO |
| Størrelse | 1.5 |
| Ansøgning | DSC |
| Løsning | 480×240 |
| Sammensætning | LCM |
| Lysstyrke | 200 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | TPO |
| panel model | TD015THEB2 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 1.5 inch |
| løsning | 480×240 |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 29.79×22.32 mm |
| omrids | 37.1×32.7 mm |
| overflade | Hard coating (2H) |
| lysstyrke | 200 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 13/22 (Typ.)(Tr/Td) |
| synsvinkel | 40/40/20/50 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 1 pcsWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, 40 pins |
| indgangsspænding | 3.0V (Typ.) |
| Ansøgning | DSC |
| 990000738 | TPO | 3.5 | 320×240 |
| A027DN03 V7 | AUO | 2.7 | 320×240 |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| DLC0350CZG-T-2 | Other | 3.5 | 320×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| LTV250QV-F0A | Samsung | 2.5 | 320×240 |
| LTV350QV-F0E | Samsung | 3.5 | 320×240 |
| PA025XSC | E Ink | 2.5 | 480×234 |
| PT035TN23 V.1 | Innolux | 3.5 | 320×240 |
| TD030WHEA1 | TPO | 3.0 | 320×240 |
