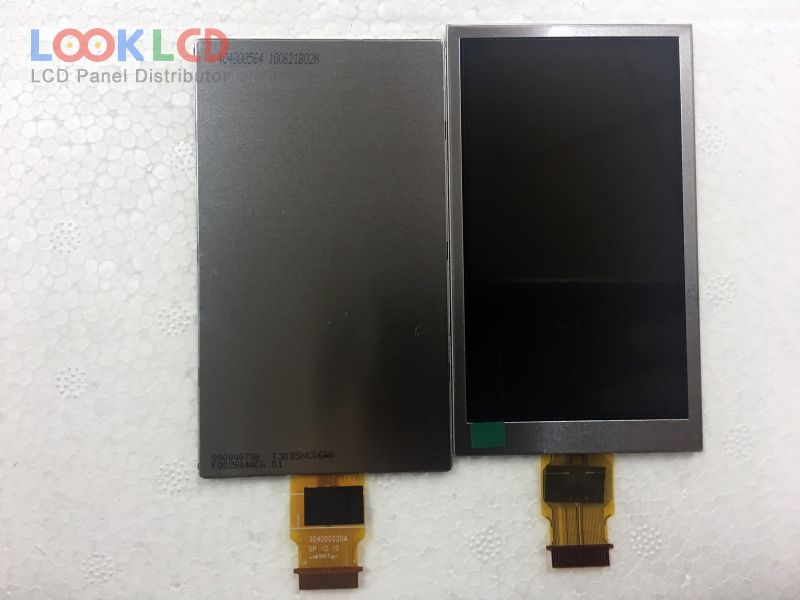

| Varenummer | 990000738 |
| Mærke | TPO |
| Størrelse | 3.5 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | TPO |
| panel model | 990000738 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 76.84×43.2 mm |
| omrids | 89.5×51.76×2.9 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193140% |
| responstid | 5/11 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/55/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 4S1PWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, 39 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DSC |
| 990000006 | TPO | 3.0 | 320×240 |
| 990000270 | TPO | 2.5 | 320×240 |
| 990000475 | TPO | 4.3 | 800×480 |
| 990000475P | TPO | 4.3 | 800×480 |
| 990000553 | TPO | 3.5 | 320×240 |
| 990000738 | TPO | 3.5 | 320×240 |
| 990000738A | Innolux | 3.5 | 320×240 |
| 990000881 | TPO | 3.0 | 960×480(dot) |
| 990001086 | Innolux | 3.0 | |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| A027DN03 V2 | AUO | 2.7 | 320×240 |
| A030DW01 V0 | AUO | 3.0 | 320×240 |
| A030DW01 V3 | AUO | 3.0 | 320×240 |
| ACX385AKM-7 | SONY | 2.5 | 640×240 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LTV350QV-F04 | Samsung | 3.5 | 320×240 |
| PD035OX4 | E Ink | 3.5 | 320×234 |
| TD025THEE6 | TPO | 2.5 | 640×240 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
