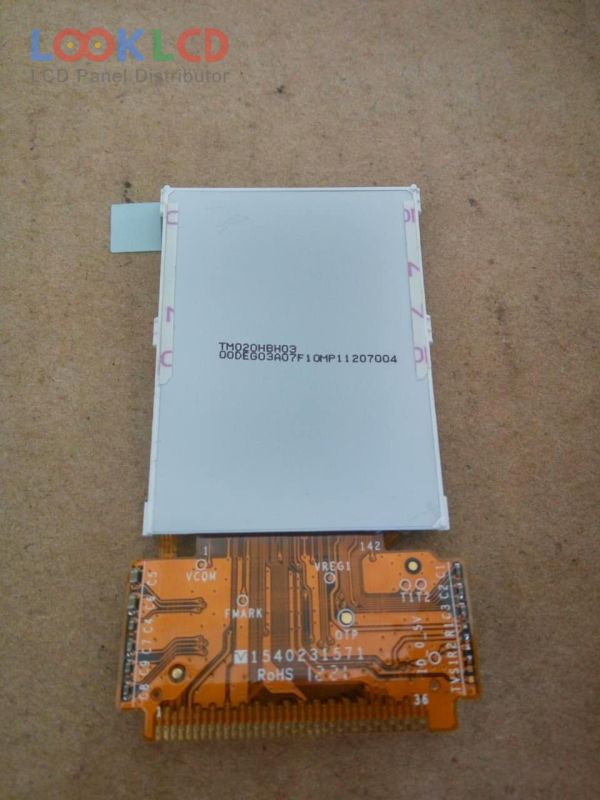

| Varenummer | TM020HBH03 |
| Mærke | Tianma |
| Størrelse | 2.0 |
| Ansøgning | MPH |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 170 |
| CR | 500:1 |
| Farver | 65K/262K |
| Baggrundsbelysning | WLED |
| Interface | CPU |
| panel mærke | TIANMA |
| panel model | TM020HBH03 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.0 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 30.24×40.32 mm |
| omrids | 35.6×48.2 mm |
| overflade | Clear |
| lysstyrke | 170 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 65K/262K , CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 60/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1S2PWLEDWithout Driver |
| signal interface | CPU, 36 pins |
| indgangsspænding | 2.8/(1.8/2.8)V (Typ.)(VCC/IOVCC) |
| rohs: | |
