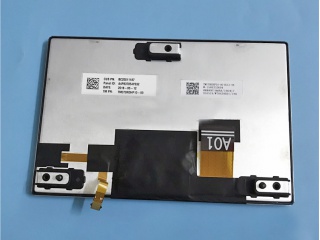

| Varenummer | TM070RDHP10-00 |
| Mærke | TIANMA |
| Størrelse | 7.0 |
| Ansøgning | Automotive Display |
| Løsning | 800×480 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Parallel |
| mærke | TIANMA |
| model | TM070RDHP10-00 |
| diagonal størrelse | 7.0 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 800(RGB)×480 [WVGA] 133PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 152.4(H)×91.44(V) mm |
| omrids dim. | 165.1(H)×108.44(V) ×13(D) mm |
| bezel område | 155.4(H)×94.44(V) mm |
| behandling | Antiglare, Hard coating (3H) |
| luminans | 1000 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 35 (Max.)(Tr+Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10) |
| driftstilstand | SFT, Normally Black, Transmissive |
| støtte farve | 16.7M 71% NTSC |
| lyskilde | WLED [8S2P] , 10K hours , W/O Driver |
| vægt | 180g (Max.) |
| designet til | Automotive Display |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | Parallel RGB (1 ch, 6/8-bit) , 40 pins FPC |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -45 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
