| Varenummer | CLAA070MA0ACW |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | DPF |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 262K/16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |

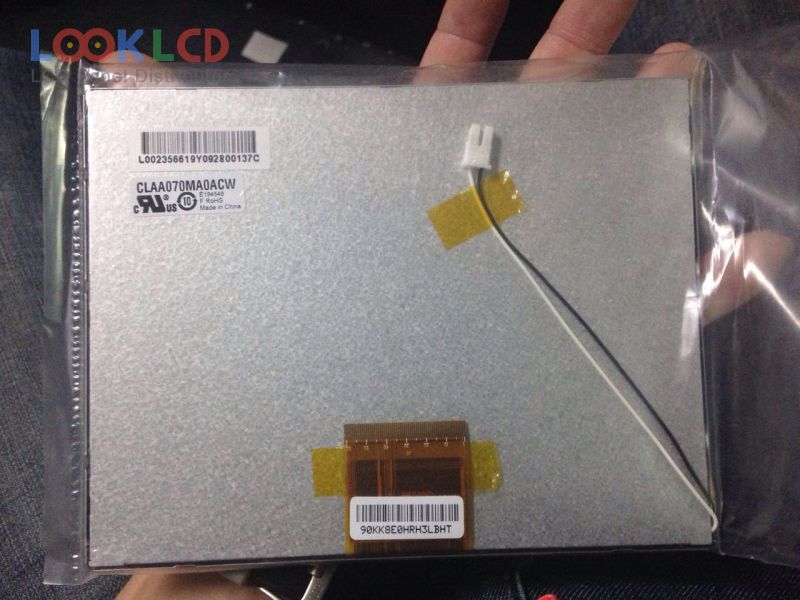

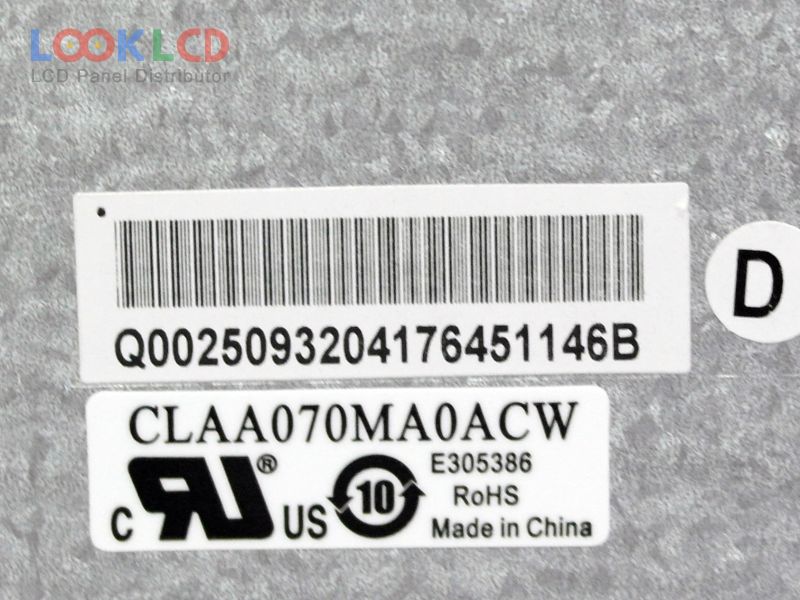

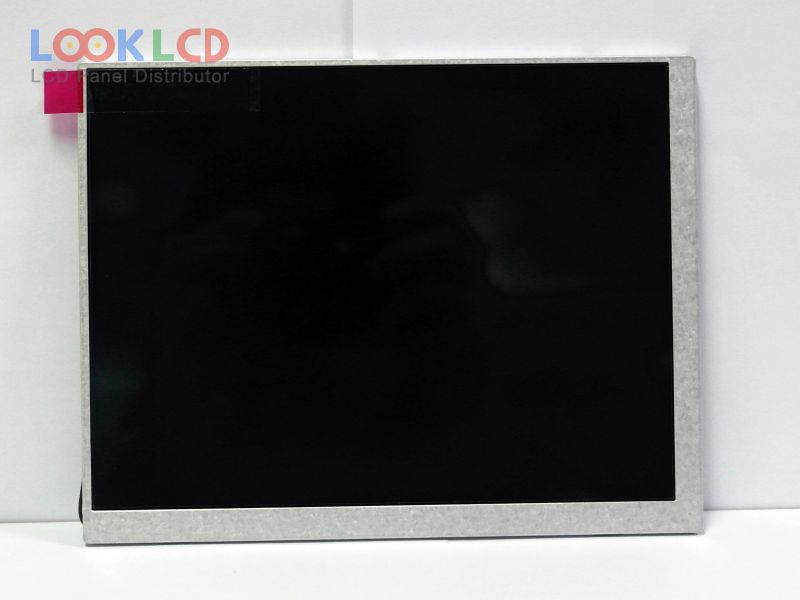

| panel model | CLAA070MA0ACW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 141.6×106.2 mm |
| omrids | 154×119.2×5.4 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K/16.2M (6-bit / 6-bit + FRC) |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| indgangsspænding | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | DPF |
