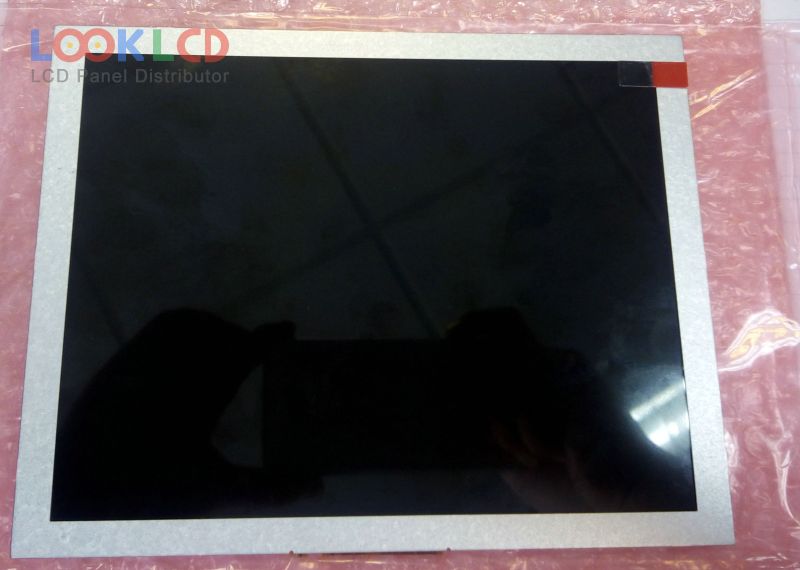

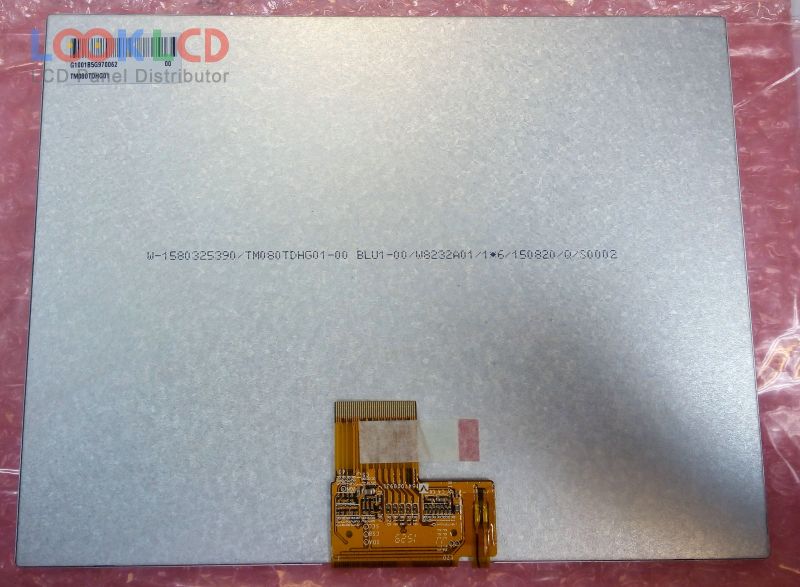

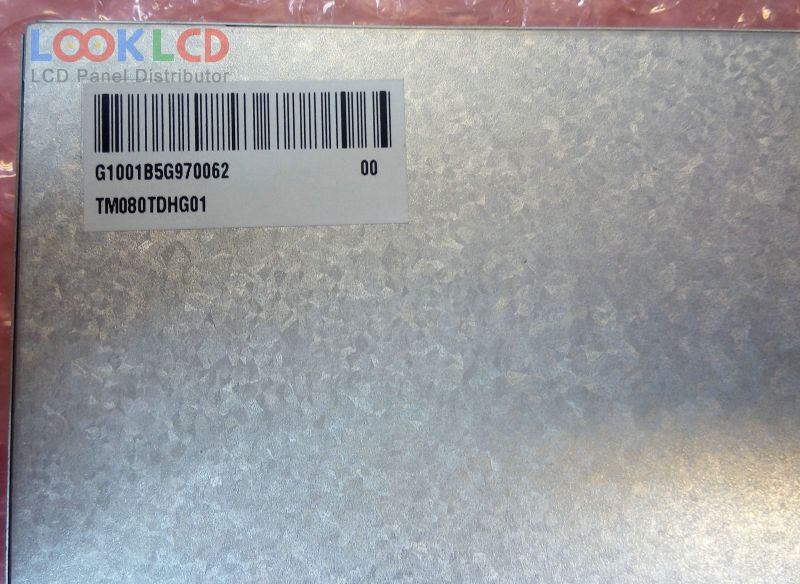

| Varenummer | TM080TDHG01 |
| Mærke | Tianma |
| Størrelse | 8.0 |
| Ansøgning | PAD |
| Løsning | 1024×768 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 700:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | TIANMA |
| panel model | TM080TDHG01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 1024(RGB)×768 , XGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 162.048×121.536 mm |
| omrids | 183×141×3.7 mm |
| overflade | Clear |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 700:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S9PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| indgangsspænding | 3.3/11.5/20.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | PAD |
