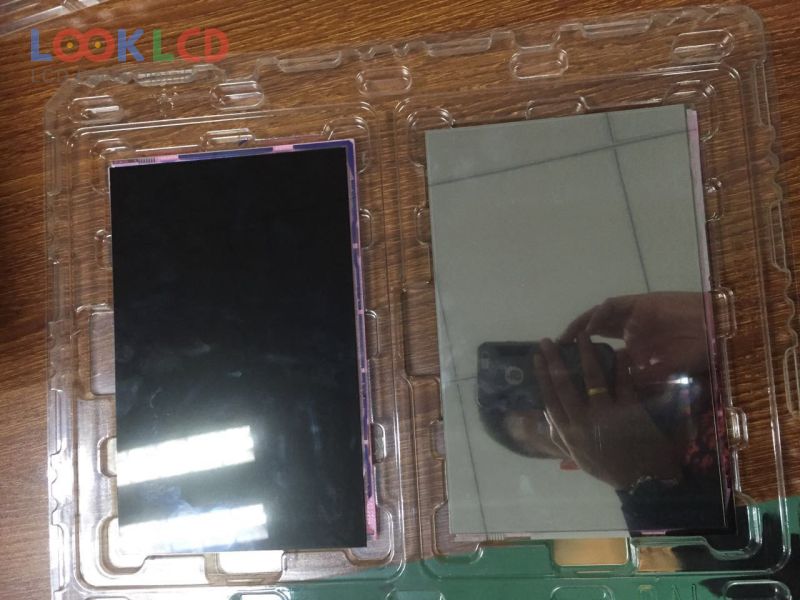

| Varenummer | F101NWN7-0 |
| Mærke | IVO |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1920×1200 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 800:1 |
| Farver | |
| Baggrundsbelysning | No B/L |
| Interface | |
| panel mærke | IVO |
| panel model | F101NWN7-0 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 10.1 inch |
| løsning | 1920(RGB)×1200 , WUXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 217.44×135.9 mm |
| omrids | 225.5×144.4 mm |
| overflade | |
| glas dybde | 0.20+0.20 mm |
| transmissivitet | 3.8% (Typ.)(with Polarizer) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | , CIE193160% |
| responstid | 65/45 (Max.)(Tr/Td) |
| synsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Ansøgning | PAD |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| CLAA101NC05 | CPT | 10.1 | 1024×600 |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| LTN101NT05-T01 | Samsung | 10.1 | 1024×600 |
| N101BCG-L21 | Innolux | 10.1 | 1366×768 |
| N101ICG-L21 Rev.C1 | Innolux | 10.1 | 1280×800 |
| N101LGE-L41 | Innolux | 10.1 | 1024×600 |
| AMS767KC04-1 | Samsung | 7.7 | 1280×800 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| HV070WX2-100 | HYDIS | 7.0 | 800×1280 |
| LD083WU1-SPA3 | LG Display | 8.3 | 1200×1920 |
| LP079X01-SMA1 | LG Display | 7.9 | 768×1024 |
| LTL101AL06-801 | Samsung | 10.1 | 1280×800 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| Q070LRE-LB1 | Innolux | 7.0 | 1024×600 |
| TV101QUM-N00 | BOE | 10.1 | 3840×2160 |
| VVX07F015M00 | Panasonic | 7.0 | 1200×1920 |
