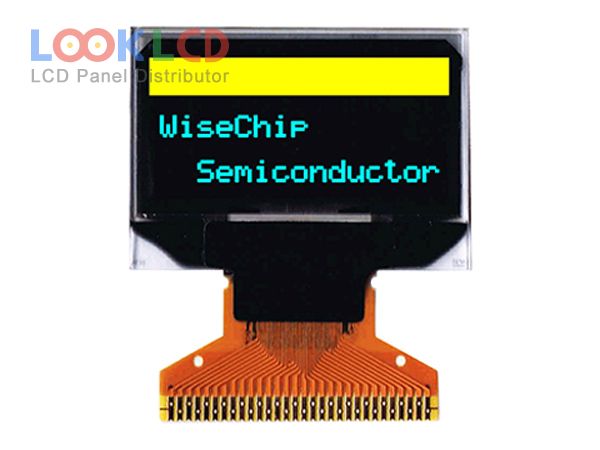

| Varenummer | UG-2864HMBEG01 |
| Mærke | WiseChip |
| Størrelse | 0.96 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | 120 |
| CR | 2000:1 |
| Farver | Area(BY) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI/I²C |
| panel mærke | Univision |
| panel model | UG-2864HMBEG01 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 0.96 inch |
| løsning | 128×64 |
| aktivt område | 21.744×11.204 mm |
| omrids | 26.7×19.26×1.55 mm |
| overflade | |
| lysstyrke | 120 cd/m² (Typ.) |
| kontrastforhold | 2000 : 1 (Typ.) |
| vise farver | Area(BY) |
| synsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COG Built-in SSD1306 |
| signal interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| indgangsspænding | 2.8/9V (Typ.)(VDD/VCC) |
| rohs: | |
| Ansøgning | IA |
