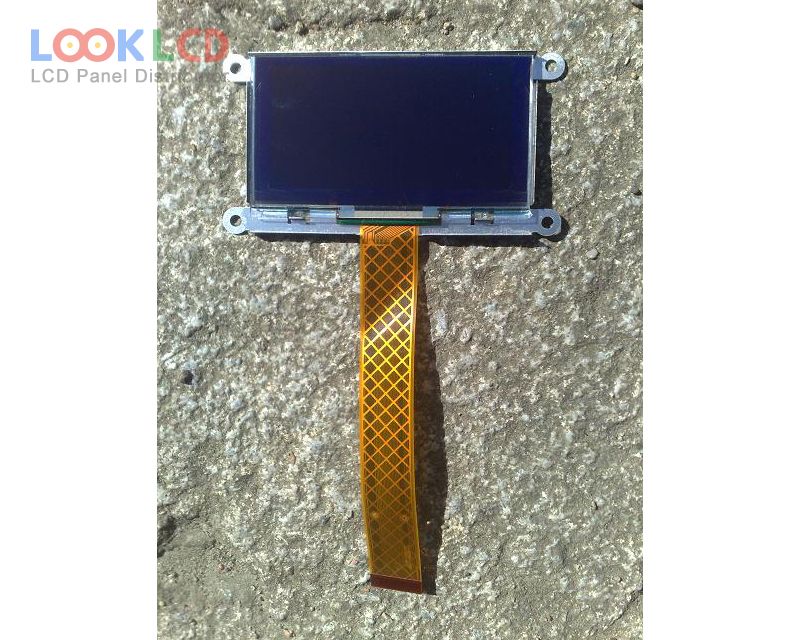

| Varenummer | UG-2864ASYDT01 |
| Mærke | WiseChip |
| Størrelse | 2.7 |
| Ansøgning | IA |
| Løsning | 128×64 |
| Sammensætning | OLED |
| Lysstyrke | 100 |
| CR | 1000:1 |
| Farver | Mono(Yellow) |
| Baggrundsbelysning | self |
| Interface | CPU/SPI |
| panel mærke | Univision |
| panel model | UG-2864ASYDT01 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 2.7 inch |
| løsning | 128×64 |
| aktivt område | 61.41×30.69 mm |
| omrids | 73×41.86×3.7 mm |
| overflade | |
| lysstyrke | 100 cd/m² (Typ.) |
| kontrastforhold | 1000 : 1 (Min.) |
| vise farver | Mono(Yellow) (1-bit) |
| synsvinkel | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | TAB Built-in SSD1325 |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, 30 pins |
| indgangsspænding | 2.8/15V (Typ.)(VDD/VCC) |
| rohs: | |
| Ansøgning | IA |
