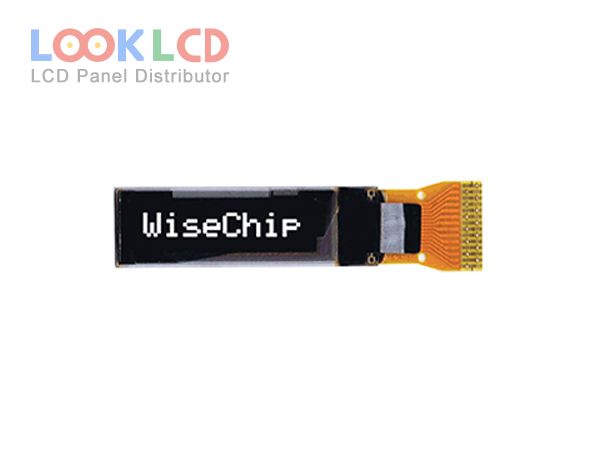

| Varenummer | UG-9616TSWCG02 |
| Mærke | WiseChip |
| Størrelse | 0.69 |
| Ansøgning | |
| Løsning | 96×16 |
| Sammensætning | OLED |
| Lysstyrke | 150 |
| CR | 10000:1 |
| Farver | Mono(White) |
| Baggrundsbelysning | self |
| Interface | I²C |
| panel mærke | WiseChip |
| panel model | UG-9616TSWCG02 |
| paneltype | PM-OLED , OLED |
| panelstørrelse | 0.69 inch |
| løsning | 96×16 |
| aktivt område | 17.26×3.18 mm |
| omrids | 27.9×8×1.55 mm |
| overflade | |
| lysstyrke | 150 cd/m² (Typ.) |
| kontrastforhold | 10000 : 1 (Typ.) |
| vise farver | Mono(White) (1-bit) |
| synsvinkel | |
| driver ic | COG Built-in SSD1306 |
| signal interface | I²C, 14 pins |
| indgangsspænding | 2.8/7.25V (Typ.)(VDD/VCC) |
| UG-9616TLBBG01 | WiseChip | 0.84 | 96×16 |
| UG-9616TSWBG01 | WiseChip | 0.84 | 96×16 |
| UG-9616TSWCG02 | WiseChip | 0.69 | 96×16 |
| A056VN01 V0 | AUO | 5.6 | 640×480 |
| DMC-16202NY-LY-BJE-BLN | Kyocera | 2.3 | 16×2 |
| LQ150X1LGN1 | SHARP | 15.0 | 1024×768 |
| LQ150X1LGN2C | SHARP | 15.0 | 1024×768 |
| LS025Q1UC01 | SHARP | 2.5 | |
| LSUGC202XA | ALPS | 8.9 | 640×240 |
| OEL9M5001-W-E | Other | 2.7 | 128×64 |
| RGS11128036WR014 | RiTdisplay | 1.1 | 128×36 |
| TD043MTEA1 | TPO | 4.3 | 800×480 |
| TFT1N6248-E | Other | 3.2 | 240×320 |
