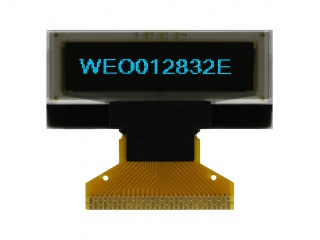

| Varenummer | WEO012832ES |
| Mærke | Winstar |
| Størrelse | 1.0 |
| Ansøgning | Handheld & PDA Weara |
| Løsning | 128×32 |
| Sammensætning | PM-OLED , OLED |
| Lysstyrke | |
| CR | |
| Farver | Mono(Blue) |
| Baggrundsbelysning | self |
| Interface | 8-bit |
| mærke | Winstar |
| diagonal størrelse | 1.0 inch |
| pixel format | 128×32 127PPI |
| aktivt område | 25.58(H)×6.38(V) mm |
| bezel område | 27.68(H)×7.8(V) mm |
| visningsretning | Symmetry |
| synsvinkel | - |
| støtte farve | Mono(Blue) |
| vægt | - |
| billedhastighed | - |
| d-ic detalje | COG Built-in SSD1306BZ |
| interface type | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C , 30 pins FPC |
| Strømforsyning | 3.0V (Typ.) |
| model | WEO012832ES |
| type | PM-OLED , OLED |
| konfiguration | Rectangle |
| omrids dim. | 33.4(H)×14.5(V) ×1.68(D) mm |
| behandling | - |
| responstid | - |
| driftstilstand | - |
| lyskilde | self |
| designet til | Handheld & PDA Wearable Instruments & Meters |
| berøringspanel | Without |
| DLC0104AZOG | Other | 1.0 | 128×32 |
| OEL9M0073-B-E | Other | 1.0 | 128×64 |
| OEL9M0073-G-E | Other | 1.0 | 128×64 |
| OEL9M0073-R-E | Other | 1.0 | 128×64 |
| OEL9M0073-W-E | Other | 1.0 | 128×64 |
| OEL9M0073-Y-E | Other | 1.0 | 128×64 |
| RGS10128032WR003 | RiTdisplay | 1.0 | 128×32 |
| RGS10128032WR006 | RiTdisplay | 1.0 | 128×32 |
| UG-2832TLBGG01 | WiseChip | 1.0 | 128×32 |
| UG-2832TSWGG01 | WiseChip | 1.0 | 128×32 |
