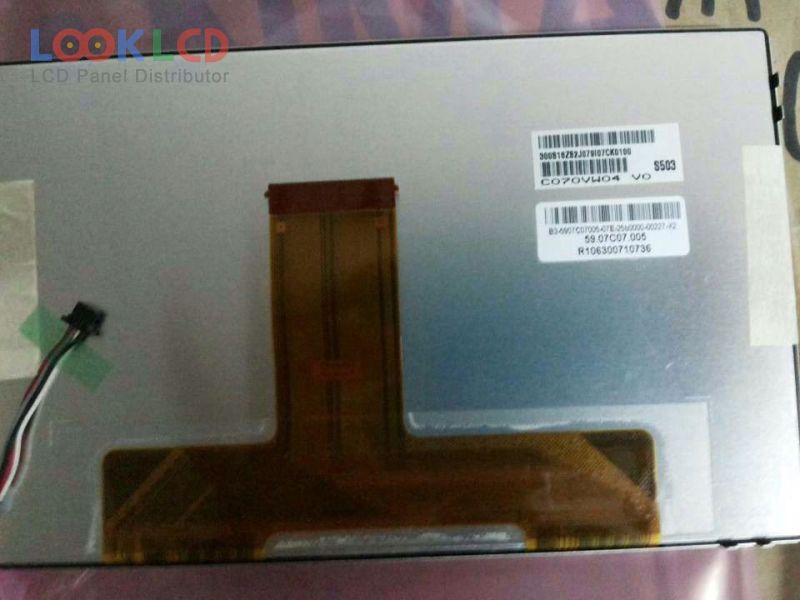

| Varenummer | C070VW04 V0 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 650 |
| CR | 2000:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | C070VW04 V0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | AMVA, Normally Black, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 164.55×105.1×8.78 mm |
| overflade | Antiglare |
| lysstyrke | 650 cd/m² (Typ.) |
| kontrastforhold | 2000:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193155% |
| responstid | 10/20 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.2/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| C070VAN01.1 | AUO | 7.0 | 800×480 |
| C070VAN01.3 | AUO | 7.0 | 800×480 |
| C070VTN01.0 | AUO | 7.0 | 800×480 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| C070VW01 V0 | AUO | 7.0 | 800×480 |
| C070VW04 V2 | AUO | 7.0 | 800×480 |
| C070VW04 V5 | AUO | 7.0 | 800×480 |
| C070VW04 V6 | AUO | 7.0 | 800×480 |
| C070VW04 V7 | AUO | 7.0 | 800×480 |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| AV080WSM-NW3 | BOE | 8.0 | 1024×600 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| HT07W12-200 | HYDIS | 7.0 | 480×234 |
| L5F30818P01 | Epson | 6.5 | 800×480 |
| LB070WV3-SD03 | LG Display | 7.0 | 800×480 |
| LQ070T5DG30 | SHARP | 7.0 | |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| PM065WX3 | E Ink | 6.5 | 800×480 |
| PW070XUA | E Ink | 7.0 | 480×234 |
