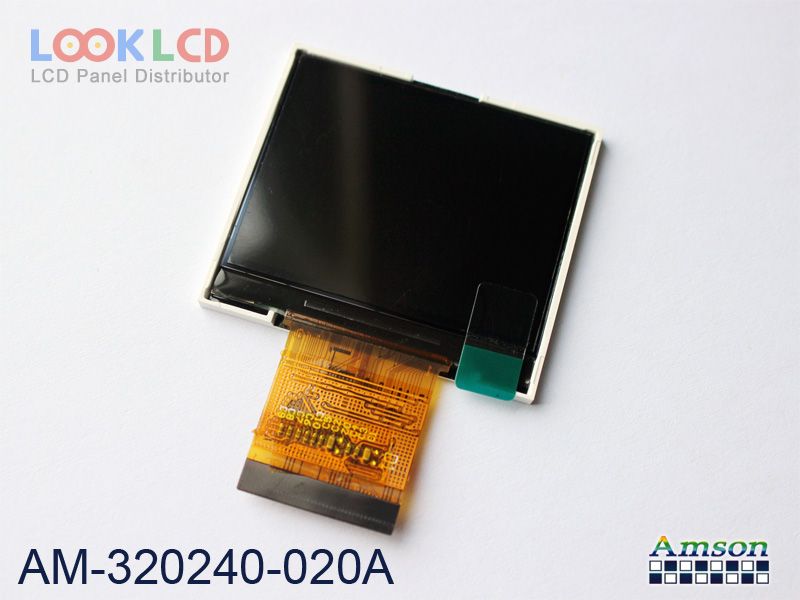

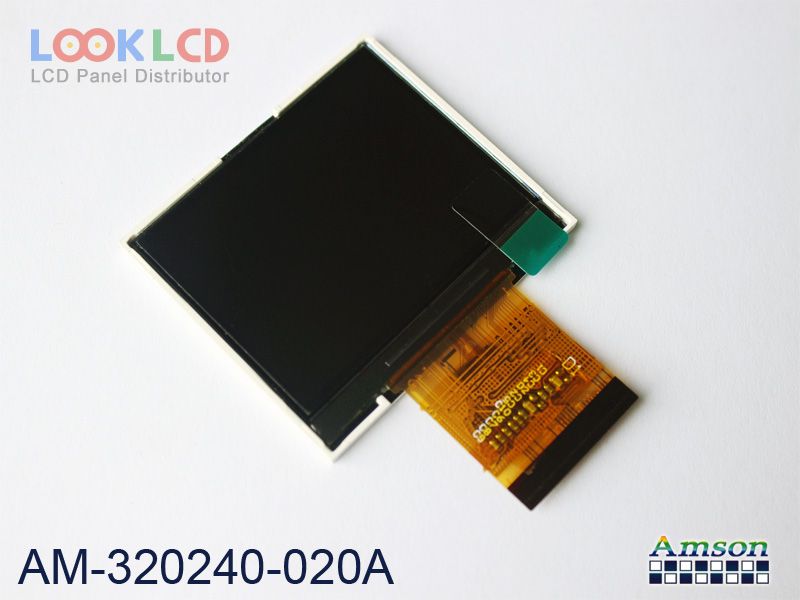

| Varenummer | AM-320240-020A |
| Mærke | Other |
| Størrelse | 2.0 |
| Ansøgning | HHP |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | Amson |
| panel model | AM-320240-020A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.0 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 40.8×30.6 mm |
| omrids | 46.1×40.96×2.7 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit) |
| responstid | |
| synsvinkel | |
| lampe type | WLEDWithout Driver |
| signal interface | Serial RGB (6-bit) + SPI, 40 pins |
| indgangsspænding | 2.8/2.8V (Typ.)(IOVCC/VCI) |
| Ansøgning | HHP |
