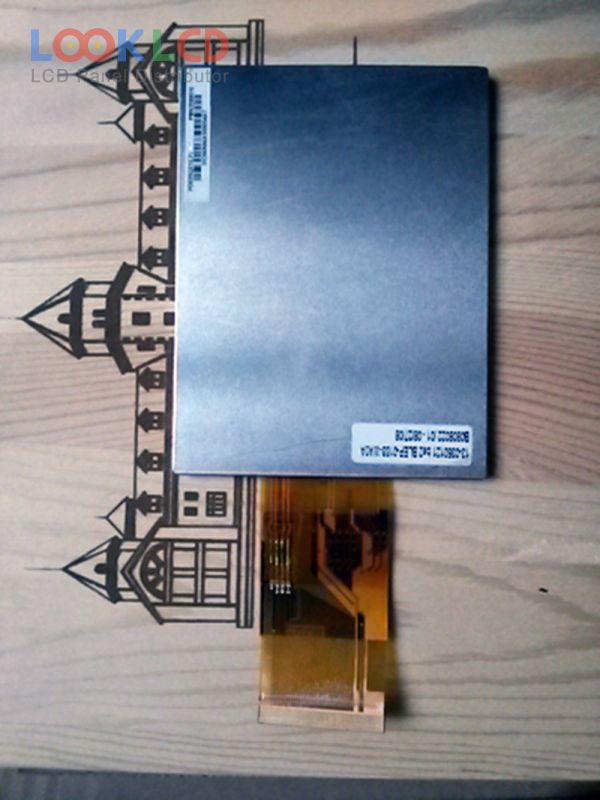

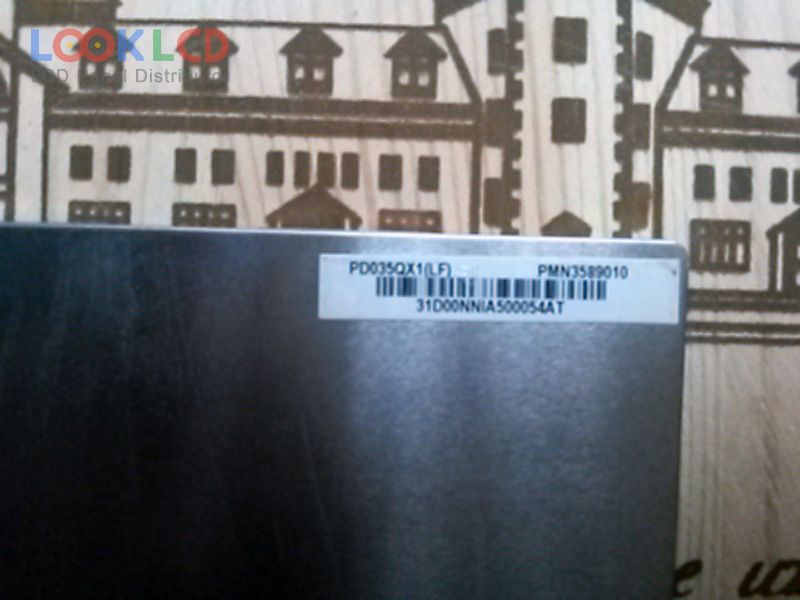

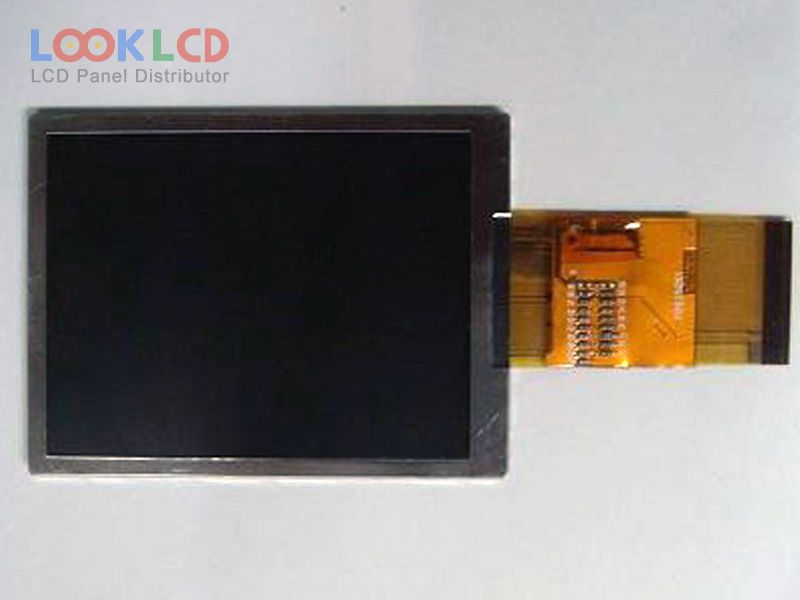

| Varenummer | PD035QX1 |
| Mærke | E Ink |
| Størrelse | 3.5 |
| Ansøgning | PND |
| Løsning | 240×320 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | CPU/RGB/SPI |
| panel mærke | PVI |
| panel model | PD035QX1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.5 inch |
| løsning | 240(RGB)×320 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 53.64×71.52 mm |
| omrids | 64×85×3.8 mm |
| overflade | Antiglare |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/25 (Typ.)(Tr/Td) |
| synsvinkel | 75/75/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S3PWLEDWithout Driver |
| signal interface | CPU/RGB/SPI, 50 pins |
| rohs: | |
| Ansøgning | PND |
| A035VL01 V0 | AUO | 3.5 | 800×480 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| PD035OX1 | E Ink | 3.5 | 320×234 |
| PD035OX4 | E Ink | 3.5 | 320×234 |
| PD035QX1 | E Ink | 3.5 | 240×320 |
| PD035QX2 | E Ink | 3.5 | 320×240 |
| PD035VX2 | E Ink | 3.5 | 640×480 |
| PD035VX8 | E Ink | 3.5 | 480×640 |
| PD035VX9 | E Ink | 3.5 | 480×640 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| 35HVF0H | SII | 3.5 | 320×480 |
| 35QVW1H | SII | 3.5 | 320×240 |
| AM480272H3TMQW-T00H | AMPIRE | 4.3 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| LMS430HF27 | Samsung | 4.3 | 480×272 |
| LMS480KC01 | Samsung | 4.8 | 800×480 |
| LMS500HF04-002 | Samsung | 5.0 | 480×272 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| P0430WQLC-T | CMEL | 4.3 | 480×272 |
