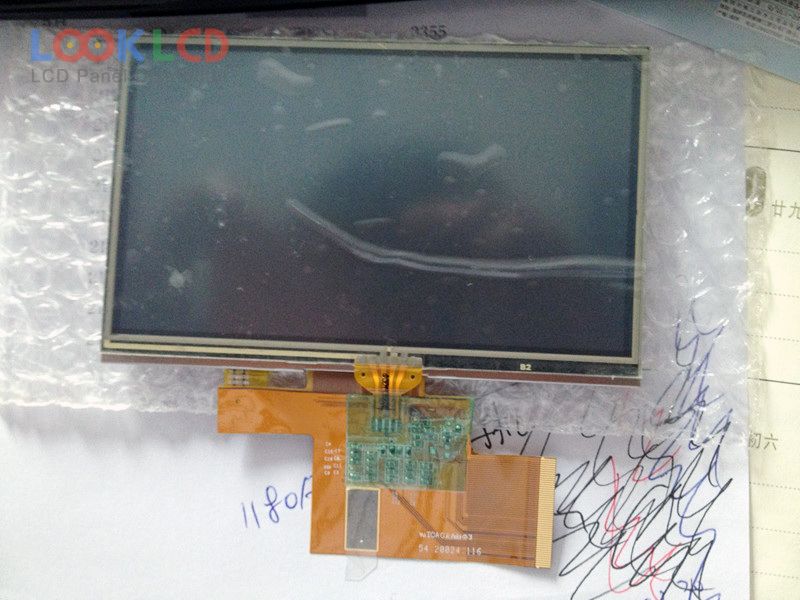

| Varenummer | A050FW03 V2 |
| Mærke | AUO |
| Størrelse | 5.0 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A050FW03 V2 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 110.88×62.832 mm |
| omrids | 120.7×75.8×4.45 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 7/23 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PND |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| A050FW03 V2 | AUO | 5.0 | 480×272 |
| AA050MG01 | Mitsubishi | 5.0 | 800×480 |
| ED050SC3 | E Ink | 5.0 | 800×600 |
| HSD050I9W1-A00 | HannStar | 5.0 | 480×272 |
| LM050QC1T01 | SHARP | 5.0 | 320×240 |
| LTG500QV-F03 | Samsung | 5.0 | 320×240 |
| P50AD4 | E Ink | 5.0 | 320×234 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
| 35QVW1T | SII | 3.5 | 320×240 |
| 43WQW1H | SII | 4.3 | 480×272 |
| A040FL01 V2 | AUO | 4.0 | 480×272 |
| DLC0700FDG-T-6 | Other | 7.0 | 800×480 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LMS500HF01 | Samsung | 5.0 | 480×272 |
| LQ035Q1DG02 | SHARP | 3.5 | 320×240 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LR043JC111 | Innolux | 4.3 | 480×272 |
| TS40WD2B-03 | Other | 4.0 | 480×272 |
