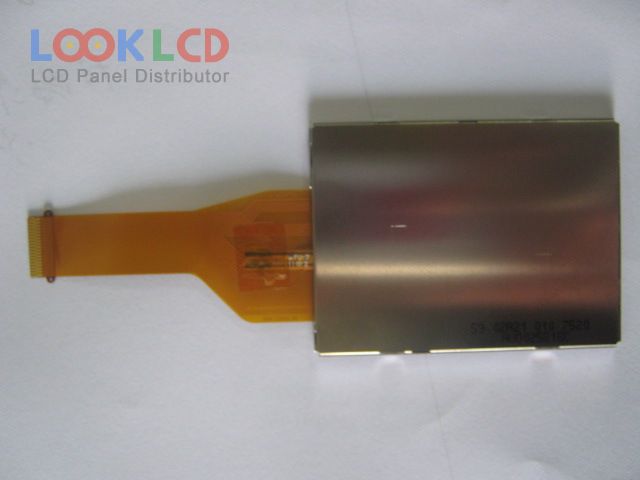

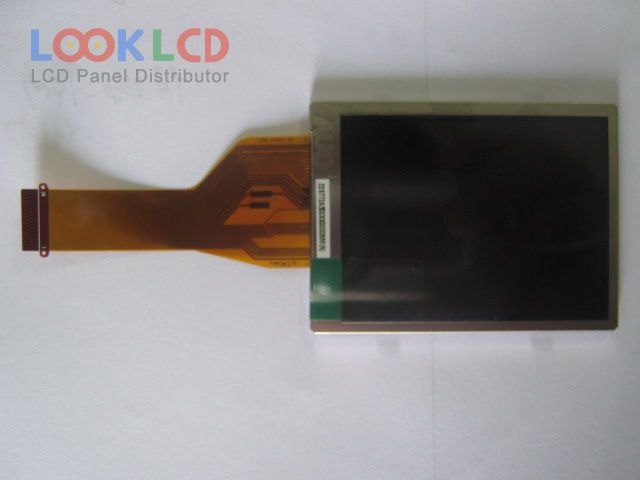

| Varenummer | A025DL02 V5 |
| Mærke | AUO |
| Størrelse | 2.5 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | AUO |
| panel model | A025DL02 V5 |
| paneltype | LTPS TFT-LCD , LCM |
| panelstørrelse | 2.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 50.4×37.8 mm |
| omrids | 60.73×45.07 mm |
| overflade | Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Min.) |
| vise farver | 16.7M (8-bit) |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 55/55/45/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S1PWLED |
| signal interface | Serial RGB (8-bit) + SPI, CCIR656, 39 pins |
| indgangsspænding | 3.3/3.3 (Typ.)(VDC/VDCI) |
| rohs: | |
