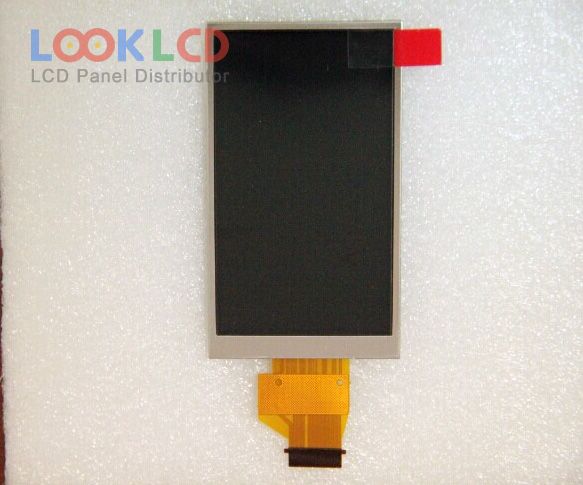

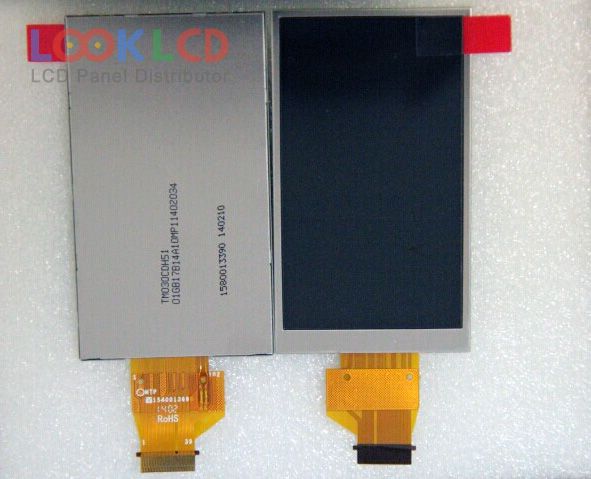

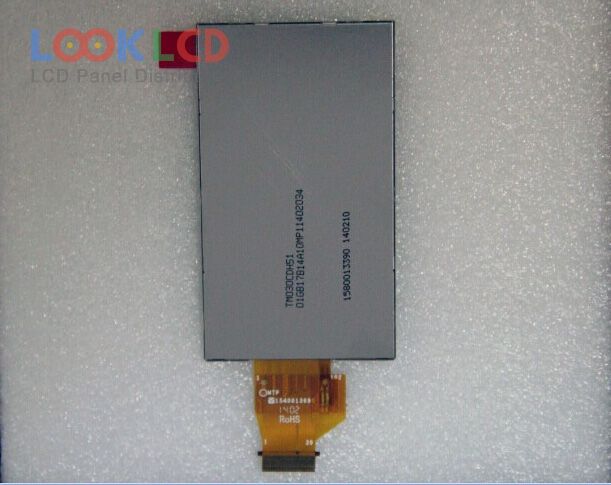

| Varenummer | TM030CDH51-00 |
| Mærke | Tianma |
| Størrelse | 3.0 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | TIANMA |
| panel model | TM030CDH51-00 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 3.0 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 65.52×36.84 mm |
| omrids | 74.92×42.74 mm |
| overflade | Hard coating |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193143% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 70/60/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 2S1PWLEDWithout Driver |
| signal interface | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DSC |
| 990000006 | TPO | 3.0 | 320×240 |
| 990001086 | Innolux | 3.0 | |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| C-51505NFJ-SLW-APN | Kyocera | 3.0 | 20×2 |
| C-51505NFQJ-LG-AKN | Kyocera | 3.0 | 20×2 |
| DLC0300AMG | Other | 3.0 | 240×400 |
| EQ030AS181 | PDI | 3.0 | 320×240 |
| LH300WQ1-ED01 | LG Display | 3.0 | 240×400 |
| LTM030DH60 | TOSHIBA | 3.0 | 240×427 |
| TM030CDH51-00 | Tianma | 3.0 | 320×240 |
| A015AN03 V0 | AUO | 1.46 | 280×220 |
| A027DN03 V4 | AUO | 2.7 | 320×240 |
| LQ025A3DD01 | SHARP | 2.5 | 480×240 |
| LQ035JC211 | Innolux | 3.5 | 320×240 |
| LS020A8DX02 | SHARP | 2.0 | 320×240 |
| LS027T3DG01 | SHARP | 2.7 | 320×240 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TD025THEA3 | TPO | 2.5 | 320×240 |
| TM035KDH16-09 | Tianma | 3.5 | 320×240 |
| UP018D11 | UNIPAC | 1.8 | 528×220(dot) |
