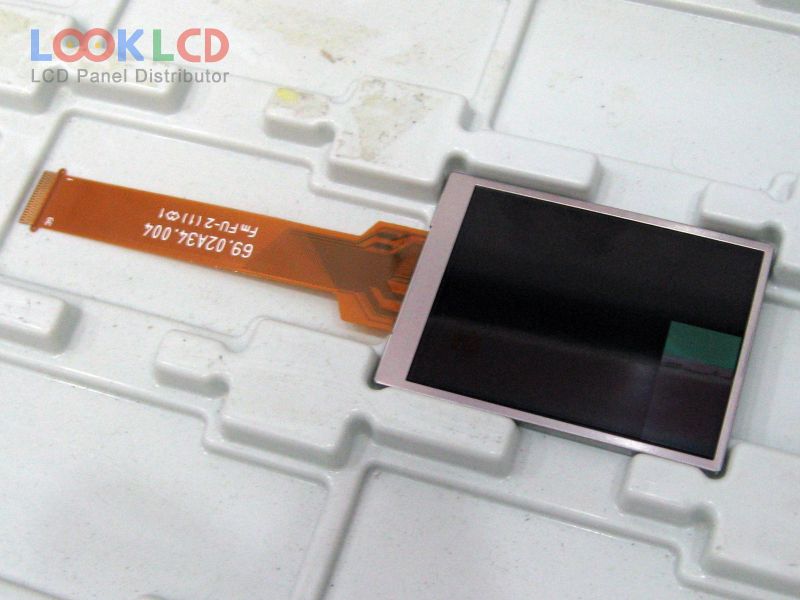

| Varenummer | A025DN01 V3 |
| Mærke | AUO |
| Størrelse | 2.5 |
| Ansøgning | DSC |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 300 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | Serial RGB |
| panel mærke | AUO |
| panel model | A025DN01 V3 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 2.5 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 49.92×37.44 mm |
| omrids | 59.63×43.7 mm |
| overflade | Hard coating |
| lysstyrke | 300 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S1PWLED |
| signal interface | Serial RGB (8-bit) + SPI, CCIR601/656, 40 pins |
| indgangsspænding | 3.3/15/-10V (VDD/VGH/VGL) |
| Ansøgning | DSC |
| 990000270 | TPO | 2.5 | 320×240 |
| A025DL02 V5 | AUO | 2.5 | 320×240 |
| A025DN01 V3 | AUO | 2.5 | 320×240 |
| A025DN01 V9 | AUO | 2.5 | 320×240 |
| ACX385AKM-7 | SONY | 2.5 | 640×240 |
| LH250Q01-TH02 | LG Display | 2.5 | 320×240 |
| LMS250GF01 | Samsung | 2.5 | |
| LTV250QV-F03 | Samsung | 2.5 | 320×240 |
| LTV250QV-F0A | Samsung | 2.5 | 320×240 |
| PA025XSB | E Ink | 2.5 | 480×234 |
| 990000006 | TPO | 3.0 | 320×240 |
| A024CN03 V2 | AUO | 2.4 | 480×234 |
| A027DN01 VQ | AUO | 2.7 | 320×240 |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| L3F04X-80300C | Epson | 0.48 | 1024×768 |
| PT035TN23 V.1 | Innolux | 3.5 | 320×240 |
| TD025THEA3 | TPO | 2.5 | 320×240 |
| TM035KDH03-36 | Tianma | 3.5 | 320×240 |
| TM035KDH04 | Tianma | 3.5 | 320×240 |
