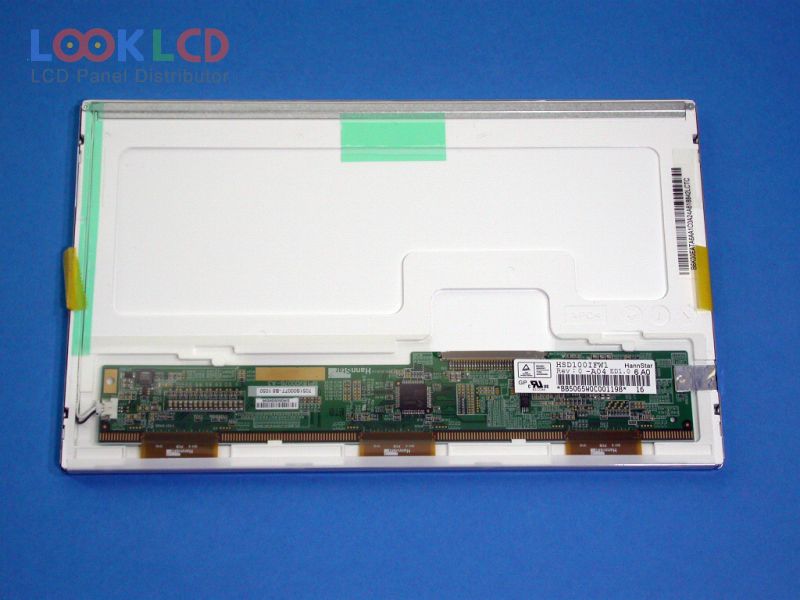

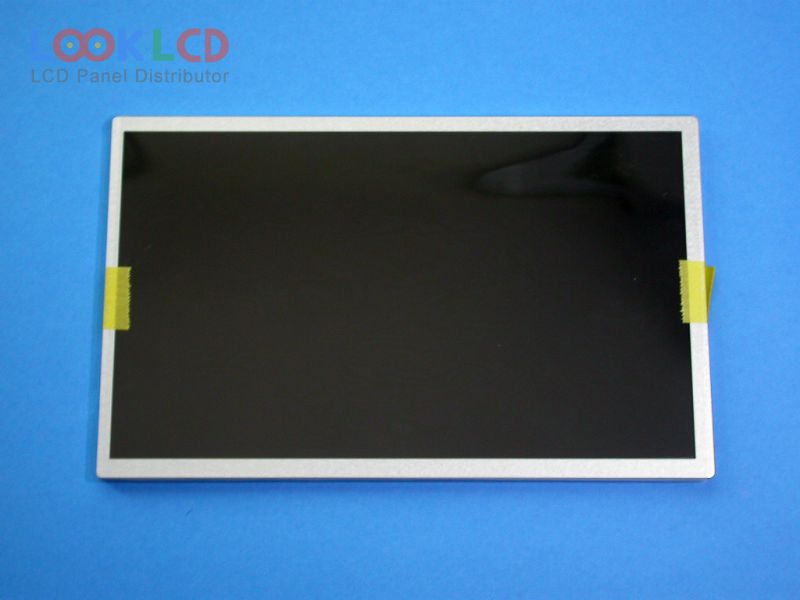

| Varenummer | HSD100IFW1-A04 |
| Mærke | HannStar |
| Størrelse | 10.1 |
| Ansøgning | DPF |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | HannStar |
| panel model | HSD100IFW1-A04 5 Compatible model |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 220.416×129.15 mm |
| omrids | 235×145.8×5.8 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193147% |
| responstid | 5/20 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | DPF |
| HSD100IFW1-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A02 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-A04 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-C01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| HSD100IFW1-F03 | HannStar | 10.1 | 1024×600 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| TT101WSQ-N10 | BOE | 10.1 | 1024×600 |
| A061VW01 V0 | AUO | 6.1 | 800×480 |
| B070ATN01.0 | AUO | 7.0 | 1024×600 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| EJ080NA-05B | Innolux | 8.0 | 800×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| LQ090Y3DG01A | SHARP | 9.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| TM104SDHG30 | Tianma | 10.4 | 800×600 |
