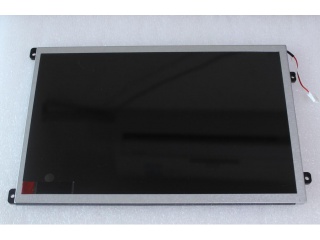

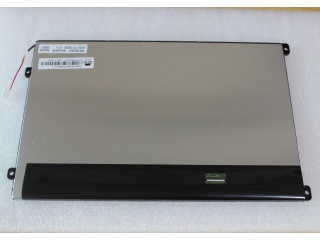

| Varenummer | AM-19201200CTZQW-02 |
| Mærke | AMPIRE |
| Størrelse | 10.1 |
| Ansøgning | Industrial Outdoor H |
| Løsning | 1920×1200 |
| Sammensætning | a-Si TFT-LCD, LCM |
| Lysstyrke | |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| mærke | AMPIRE |
| model | AM-19201200CTZQW-02 |
| diagonal størrelse | 10.1 inch |
| type | a-Si TFT-LCD, LCM |
| pixel format | 1920(RGB)×1200 [WUXGA] 225PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 216.576(H)×135.36(V) mm |
| omrids dim. | 244.8(H)×155.3(V) ×7.07(D) mm |
| luminans | 1000 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) (TM) |
| visningsretning | Symmetry |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10) |
| driftstilstand | AHVA, Normally Black, Transmissive |
| støtte farve | 16.7M 49% NTSC |
| lyskilde | WLED , 50K hours , With LED Driver |
| vægt | - |
| designet til | Industrial Outdoor High Brightness |
| billedhastighed | 60Hz |
| berøringspanel | Without |
| interface type | LVDS (2 ch, 8-bit) , 45 pins Connector |
| Strømforsyning | 3.3V (Typ.) |
| miljø | Operating Temperature: -20 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C |
