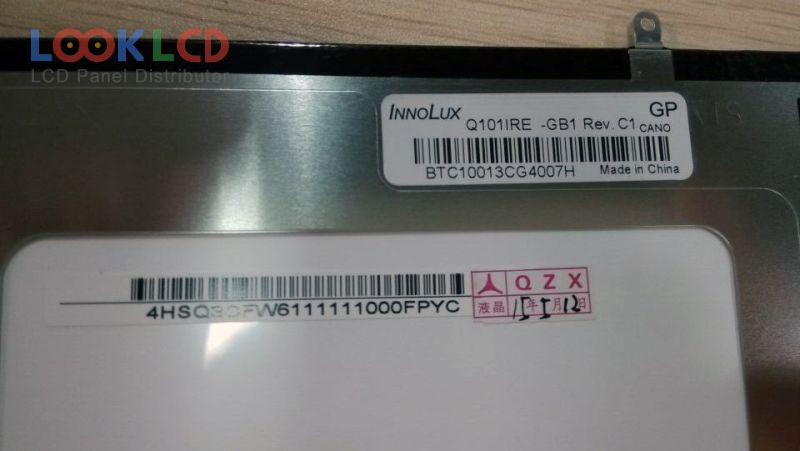

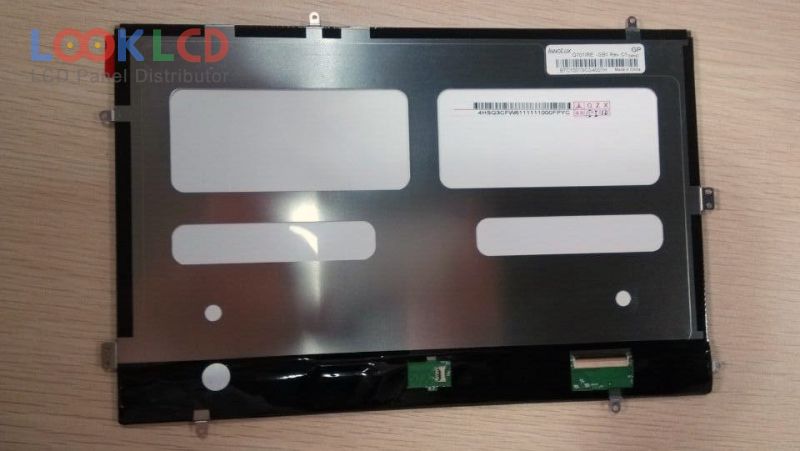

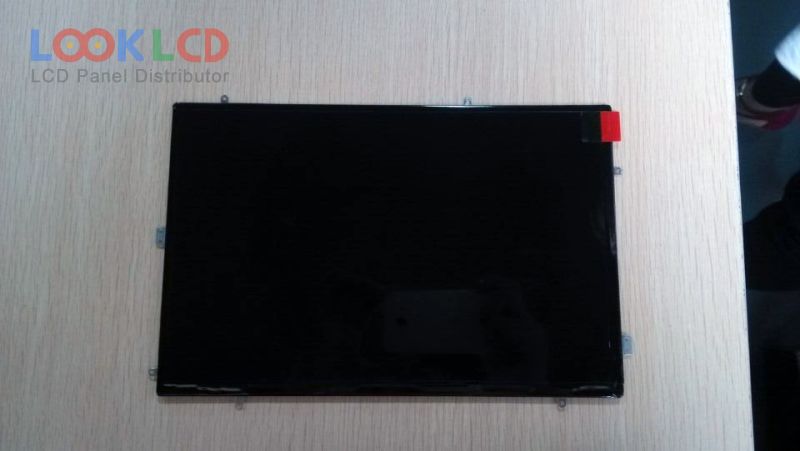

| Varenummer | Q101IRE-GB1 |
| Mærke | Innolux |
| Størrelse | 10.1 |
| Ansøgning | PAD |
| Løsning | 1280×800 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 800:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | INNOLUX |
| panel model | Q101IRE-GB1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 10.1 inch |
| løsning | 1280(RGB)×800 , WXGA |
| visningstilstand | AAS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| overflade | Hard coating |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit) |
| Ansøgning | PAD |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| B101EAN01.2 | AUO | 10.1 | 1280×800 |
| B101XAN01.3 | AUO | 10.1 | 1366×768 |
| HJ101IA-01I | Innolux | 10.1 | 1280×800 |
| HV101HD1-1E0 | HYDIS | 10.1 | 1366×768 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| LTN101NT02-W05 | Samsung | 10.1 | 1024×600 |
| LTN101NT06-W03 | Samsung | 10.1 | 1024×600 |
| Q101IRE-GB1 | Innolux | 10.1 | 1280×800 |
| Q101IRE-LA1 | Innolux | 10.1 | 1280×800 |
| B079XAN01.0 | AUO | 7.9 | 768×1024 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| CLAA100XA22XV | CPT | 10.0 | 1024×768 |
| HT12X21-230 | HYDIS | 12.1 | 1024×768 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| LP097QX1-SPA1 | LG Display | 9.7 | 2048×1536 |
| LQ079L1SX01 | SHARP | 7.9 | 1536×2048 |
| LTL075PL01-001 | Samsung | 7.5 | 1050×1400 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| TPF0702002N | JDI | 7.0 | 1200×1920 |
