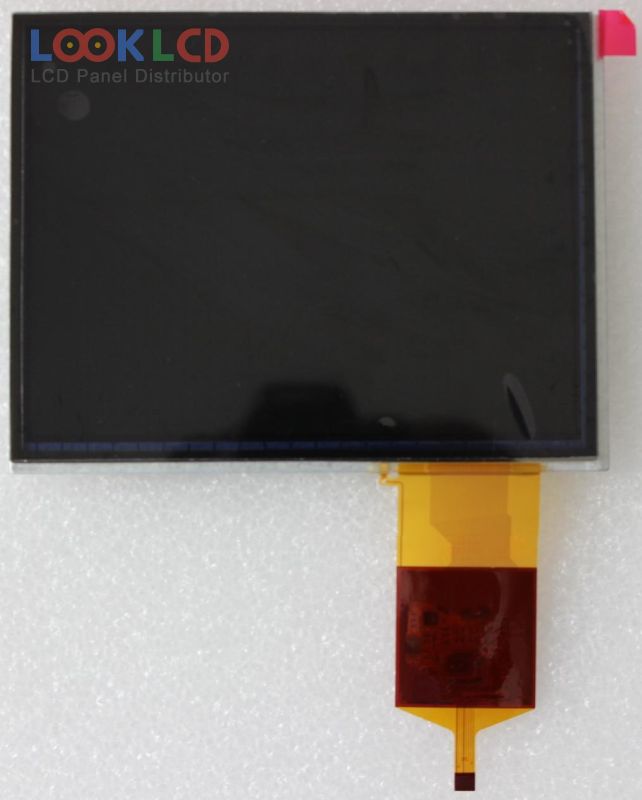

| Varenummer | AM-640480GFTNQW-T01H-L |
| Mærke | AMPIRE |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 350 |
| CR | 250:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AMPIRE |
| panel model | AM-640480GFTNQW-T01H-L |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transflective |
| aktivt område | 115.2×86.4 mm |
| omrids | 127×98.43×9.24 mm |
| overflade | |
| lysstyrke | 350 cd/m² (Typ.) |
| kontrastforhold | 250:1 (Typ.)(Transmissive) |
| vise farver | 262K (6-bit), CIE193149% |
| responstid | 50 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
