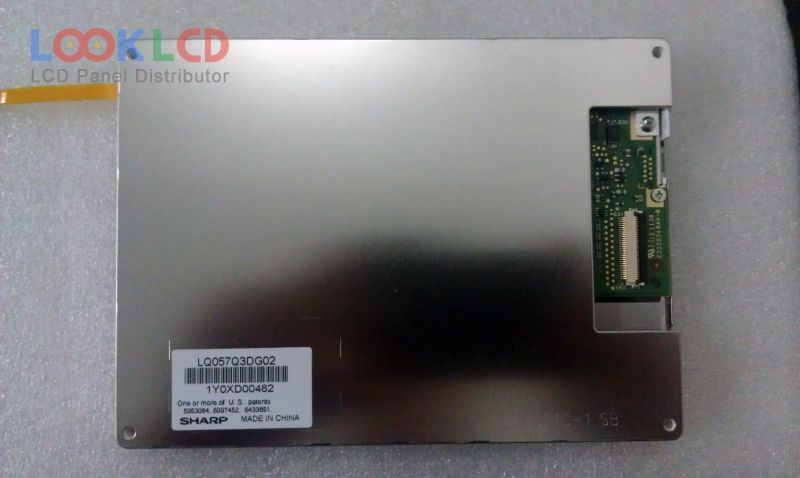

| Varenummer | LQ057Q3DG02 |
| Mærke | SHARP |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 320×240 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 550:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ057Q3DG02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 320(RGB)×240 , QVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 144×103.8×12.8 mm |
| overflade | |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 550:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 30/10 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/65 (Typ.)(CR≥5)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S4PWLED |
| signal interface | CMOS (1 ch, 6-bit), 33 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | IA |
| LQ057AC111 | Other | 5.7 | 320×240 |
| LQ057Q3DC02 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC03 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC12 | SHARP | 5.7 | 320×240 |
| LQ057Q3DG02 | SHARP | 5.7 | 320×240 |
| LQ057V3DG01 | SHARP | 5.7 | 640×480 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| LTA057A341F | TOSHIBA | 5.7 | 320×240 |
| TX14D12VM1CBA | KOE | 5.7 | 320×240 |
| AM480272H3TMQW-W2H | AMPIRE | 4.3 | 480×272 |
| G104VN01 V0 | AUO | 10.4 | 640×480 |
| G150XTN04.0 | AUO | 15.0 | 1024×768 |
| HSD190MEN4-A02 | HannStar | 19.0 | 1280×1024 |
| LM64C12P | SHARP | 9.4 | 640×480 |
| LM64P101 | SHARP | 7.2 | 640×480 |
| LQ121S1DG43 | SHARP | 12.1 | 800×600 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| SP24V001 | KOE | 9.4 | 640×480 |
