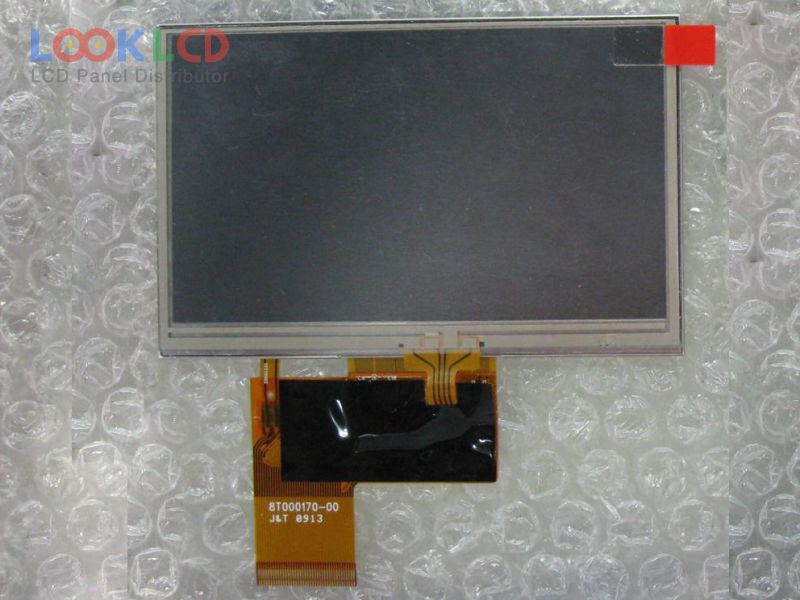

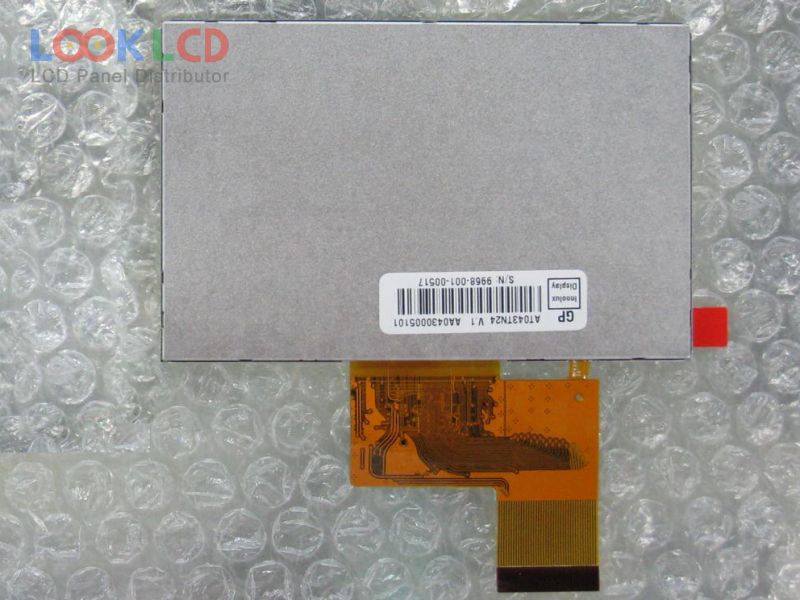

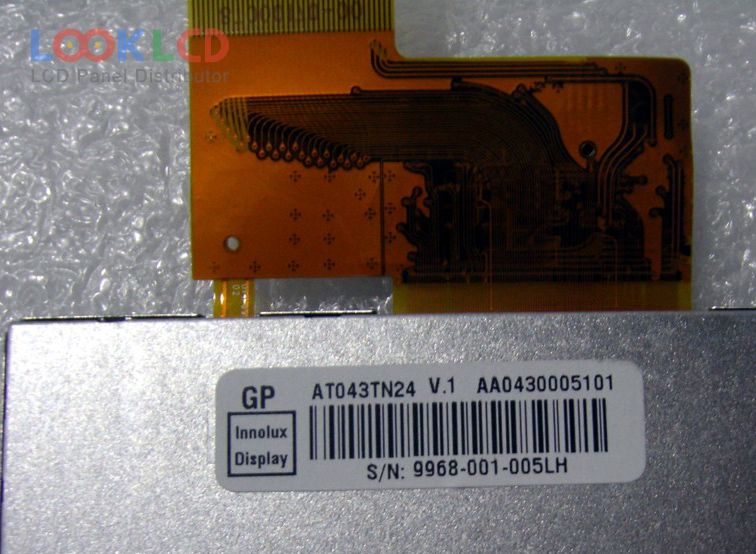

| Varenummer | AT043TN24 V.1 |
| Mærke | Innolux |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | INNOLUX |
| panel model | AT043TN24 V.1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | Antiglare |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | PND |
| AT043TN13 | Innolux | 4.3 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| BT043NHME601 | BOE | 4.3 | 360×600 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LQ043T1LX01A | SHARP | 4.3 | 540×960 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| 43WQW1H | SII | 4.3 | 480×272 |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| DLC0430LZG | Other | 4.3 | 480×272 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| DLC0500HZG-8 | Other | 5.0 | 800×480 |
| LMS500HF06 | Samsung | 5.0 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LR043JC111 | Innolux | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
