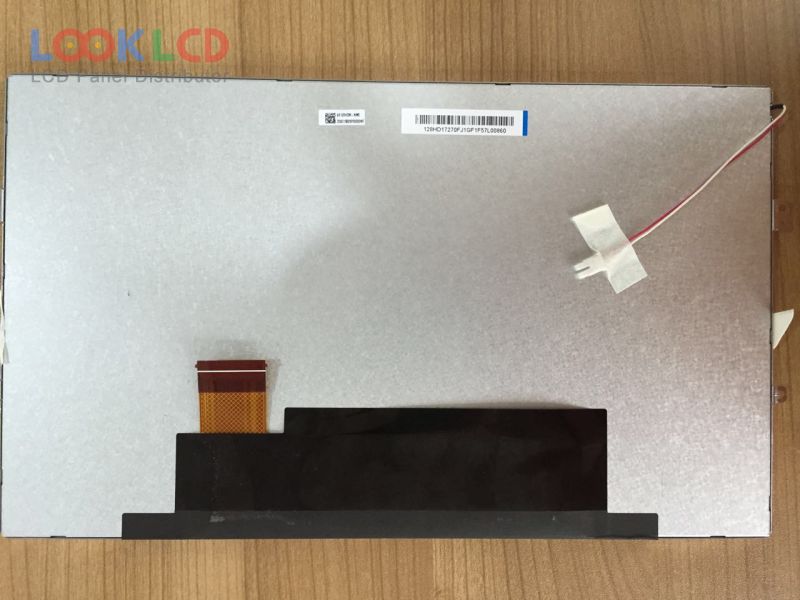

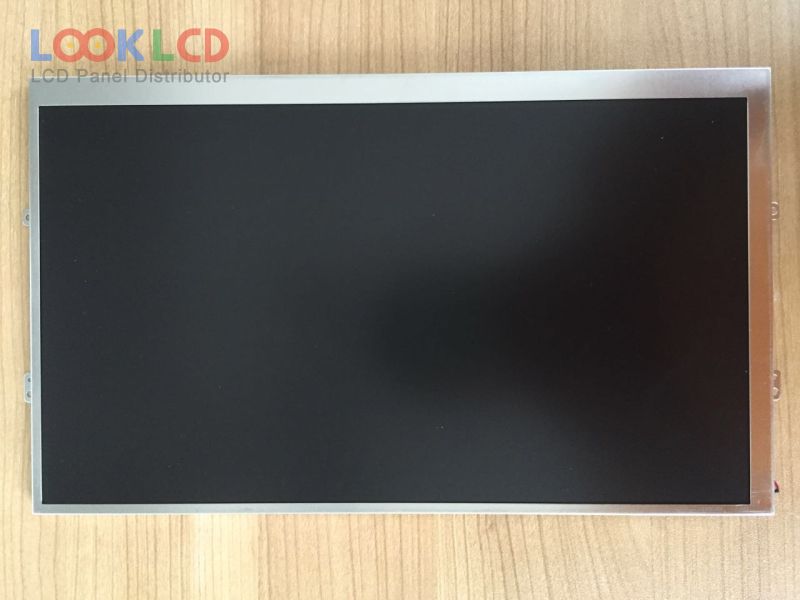

| Varenummer | AV128HDM-NW0 |
| Mærke | BOE |
| Størrelse | 12.8 |
| Ansøgning | CNS |
| Løsning | 1280×720 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | BOE |
| panel model | AV128HDM-NW0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 12.8 inch |
| løsning | 1280(RGB)×720 , WXGA |
| visningstilstand | ADS, Normally Black, Transmissive |
| aktivt område | 283.2×159.3 mm |
| omrids | 300.8×179.5×8 mm |
| overflade | |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193172% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 4S10PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 50 pins |
| indgangsspænding | 3.3/11.5/22/-9V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| AV128HDM-NW0 | BOE | 12.8 | 1280×720 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA088WA01XN | CPT | 8.8 | 1280×480 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| LA070WV6-SD01 | LG Display | 7.0 | 800×480 |
| LB058WQ1-SD02 | LG Display | 5.8 | 400×240 |
| LB070WV3-SD02 | LG Display | 7.0 | 800×480 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| M090SWP1 R0 | IVO | 9.0 | 800×480 |
