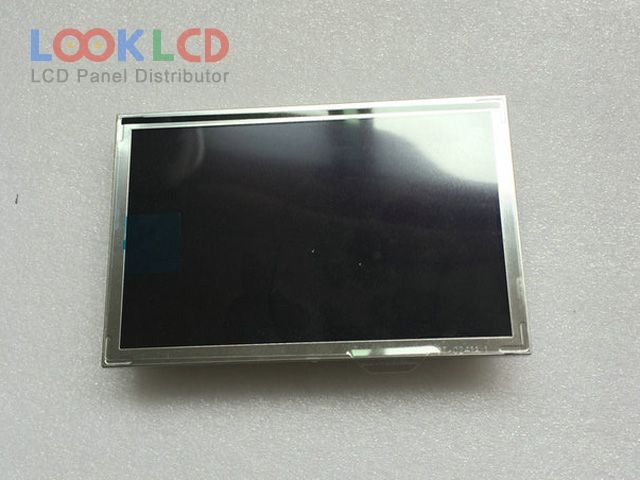

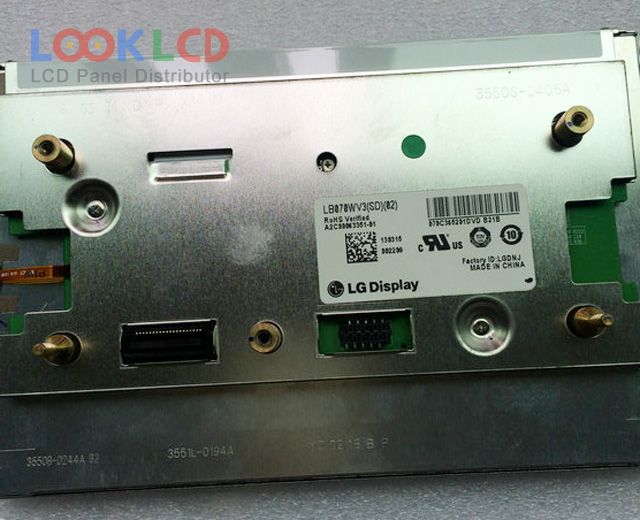

| Varenummer | LB070WV3-SD02 |
| Mærke | LG Display |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 470 |
| CR | 900:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | LG Display |
| panel model | LB070WV3-SD02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 170×109.6×29.4 mm |
| overflade | Antiglare, Antireflection |
| lysstyrke | 470 cd/m² (Typ.) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193163% |
| responstid | 15/14 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/30/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | CNS |
