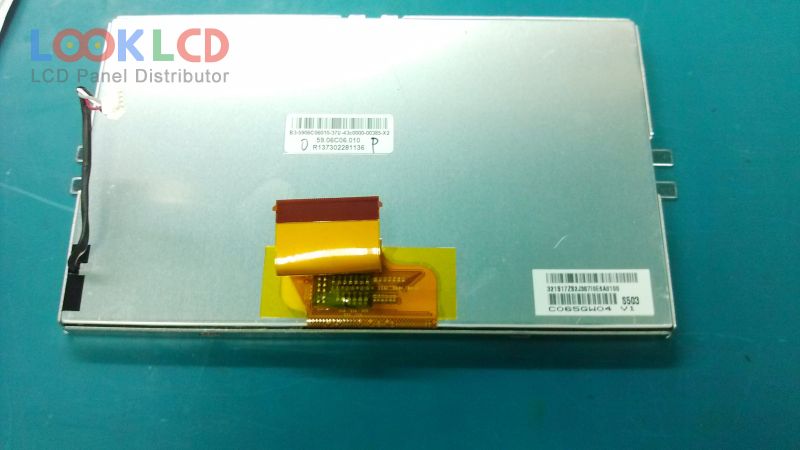

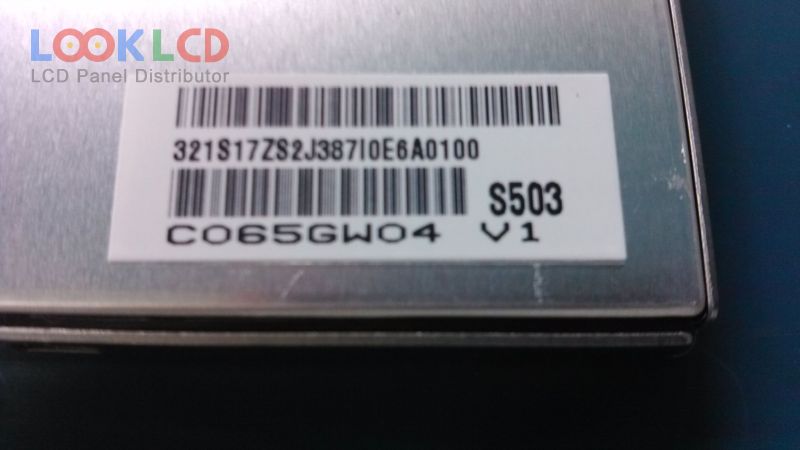

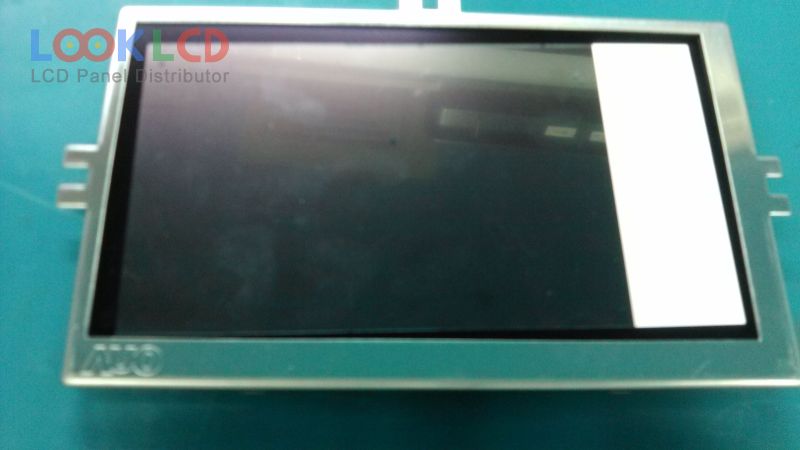

| Varenummer | C065GW04 V1 |
| Mærke | AUO |
| Størrelse | 6.5 |
| Ansøgning | CNS |
| Løsning | 400×240 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | C065GW04 V1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 6.5 inch |
| løsning | 400(RGB)×240 , WQVGA |
| visningstilstand | MVA, Normally Black, Transmissive |
| aktivt område | 143.4×79.326 mm |
| omrids | 158×95.4×7.6 mm |
| overflade | Antiglare, Antireflection |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/30 (Max.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 6S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3/13.0/15.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| AA065VE11ADA11 | Mitsubishi | 6.5 | 640×480 |
| C065GW01 V0 | AUO | 6.5 | 400×234 |
| C065GW02 V1 | AUO | 6.5 | 400×234 |
| C065GW03 V0 | AUO | 6.5 | 400×240 |
| C065GW03 V3 | AUO | 6.5 | 400×240 |
| C065GW04 V1 | AUO | 6.5 | 400×240 |
| C065GW04 V2 | AUO | 6.5 | 400×240 |
| C065VL01 V0 | AUO | 6.5 | 800×480 |
| G065VN01 V2 | AUO | 6.5 | 640×480 |
| LTA065B0F0F | TOSHIBA | 6.5 | 800×480 |
| L5F30442T15 | Epson | 6.5 | 800×480 |
| LAJ080W001A | TPO | 8.0 | 800×480 |
| LB070WV8-SL01 | LG Display | 7.0 | 800×480 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ070Y5DG01 | SHARP | 7.0 | 800×480 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| PW065XS1 | E Ink | 6.5 | 400×234 |
| PW080XU1 | E Ink | 8.0 | 480×220 |
| T-51965GD088ZU-MFW-AEN | Kyocera | 8.8 | 640×240 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
