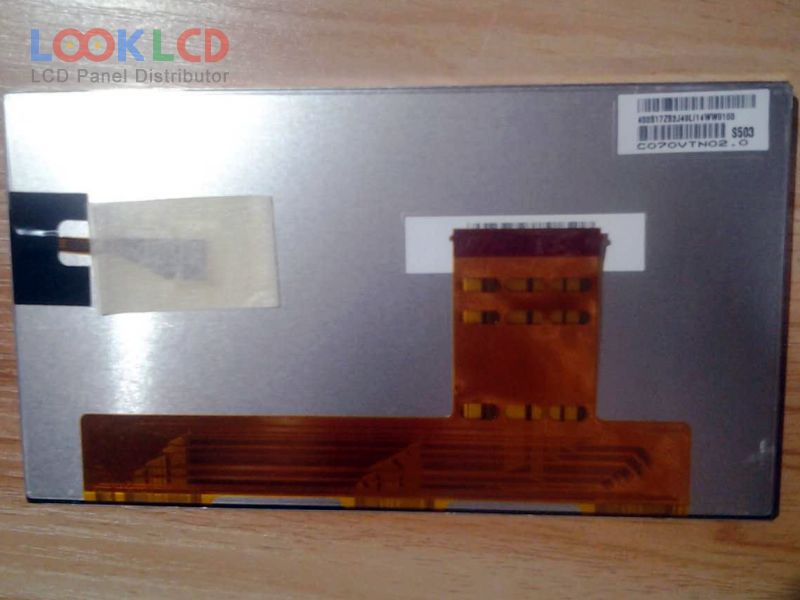

| Varenummer | C070VTN02.0 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | |
| CR | |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | |
| panel mærke | AUO |
| panel model | C070VTN02.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| overflade | |
| lysstyrke | |
| kontrastforhold | |
| vise farver | 262K (6-bit), CIE193160% |
| responstid | 12/18 (Typ.)(Tr/Td) |
| synsvinkel | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLED |
| Ansøgning | CNS |
