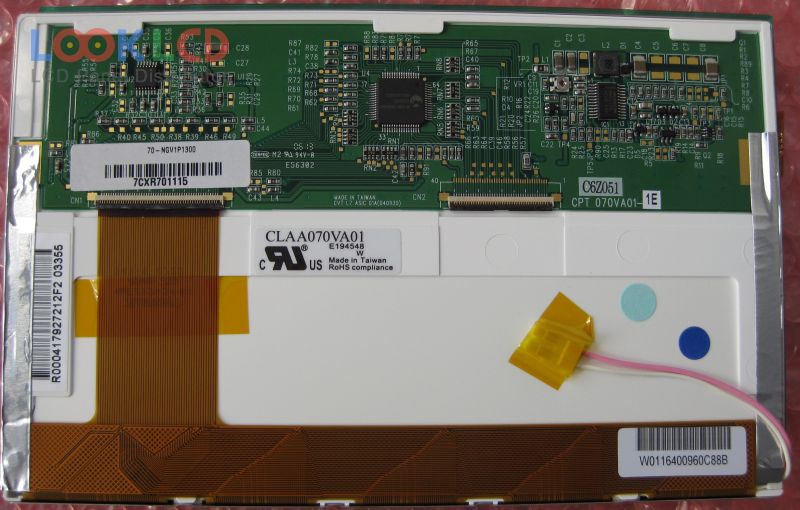

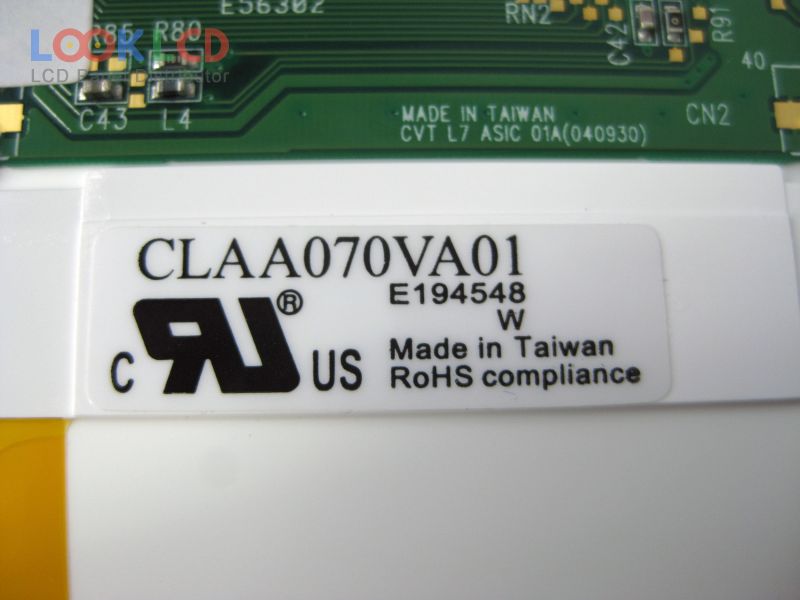

| Varenummer | CLAA070VA01 |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | MP4 |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA070VA01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 165×104 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 12/18 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | MP4 |
| CLAA030HA22DE | CPT | 3.0 | 960×480(dot) |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| CLAA057VA01CW | CPT | 5.7 | 640×480 |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| BA070WS1-200 | BOE | 7.0 | 1024×600 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA089NA0BCW | CPT | 8.9 | 1024×600 |
| DLC0700JMG-6 | Other | 7.0 | 1024×600 |
| DLC0700MIG | Other | 7.0 | 800×480 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| HSD089IFW1-D00 | HannStar | 8.9 | 1024×600 |
| LTM07C382 | TOSHIBA | 7.0 | 1024×600 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
