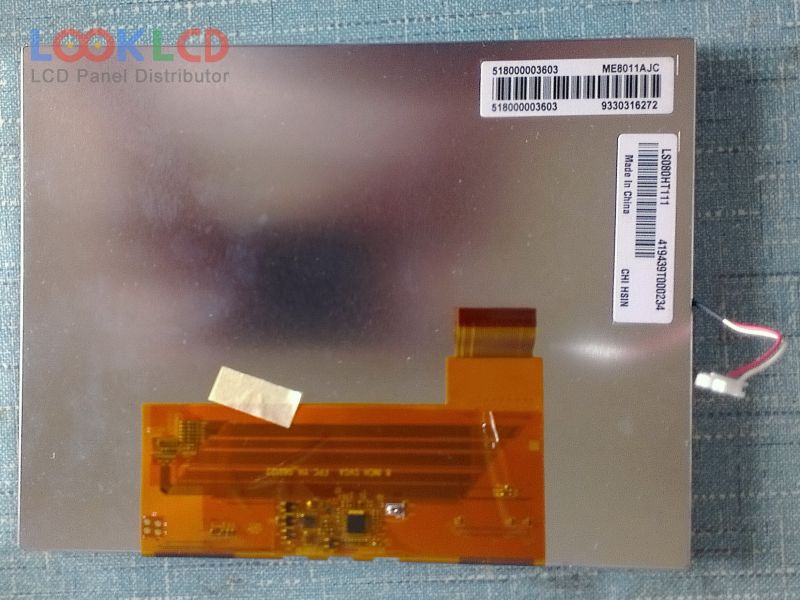

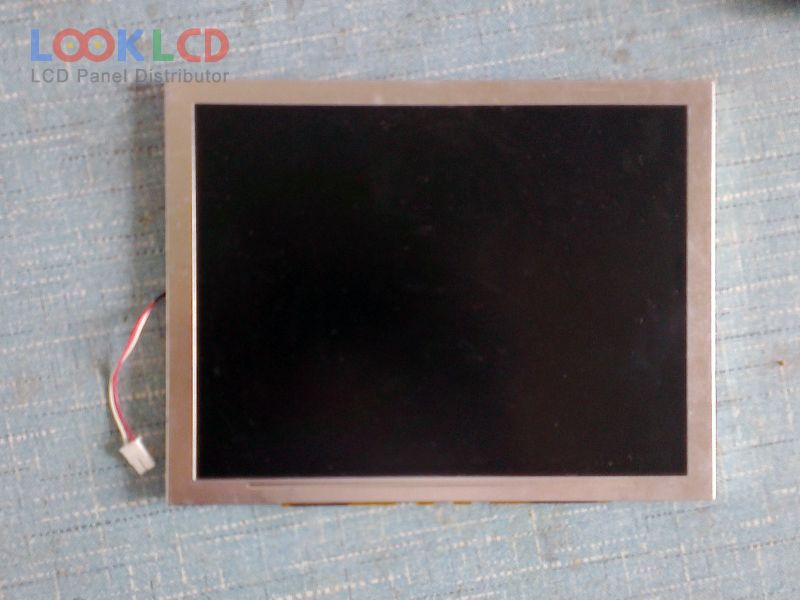

| Varenummer | LS080HT111 |
| Mærke | Innolux |
| Størrelse | 8.0 |
| Ansøgning | CNS |
| Løsning | 800×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | ChiHsin |
| panel model | LS080HT111 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 8.0 inch |
| løsning | 800(RGB)×600 , SVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 162×121.5 mm |
| omrids | 183×141 mm |
| overflade | |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/35 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| lampe type | 3S9PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | CNS |
| C080VW03 V0 | AUO | 8.0 | 800×480 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| DJ080PA-01C | Innolux | 8.0 | |
| EC080SC2 | E Ink | 8.0 | |
| EJ080NA-04B | Innolux | 8.0 | 1024×768 |
| LQ080T3AG01 | SHARP | 8.0 | 480×234 |
| LS080HT111 | Innolux | 8.0 | 800×600 |
| PW080XU4 | E Ink | 8.0 | 480×220 |
| TM080SDH01 | Tianma | 8.0 | 800×600 |
| TM080SV-22L03 | SANYO | 8.0 | 800×600 |
| 70WVW2A | SII | 7.0 | 800×480 |
| AV094Z9M-N10 | BOE | 9.4 | 1920×480 |
| C035QVN01.0 | AUO | 3.5 | 240×320 |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| DLC0700EZG-2 | Other | 7.0 | 800×480 |
| LA050WQ2-SD02 | LG Display | 5.0 | 480×240 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| LA092WV1-SD01 | LG Display | 9.2 | 800×480 |
| LQ042T5DZ01A | SHARP | 4.2 | 480×272 |
| ND068-101A1 | 6.8 | 1280×480 |
