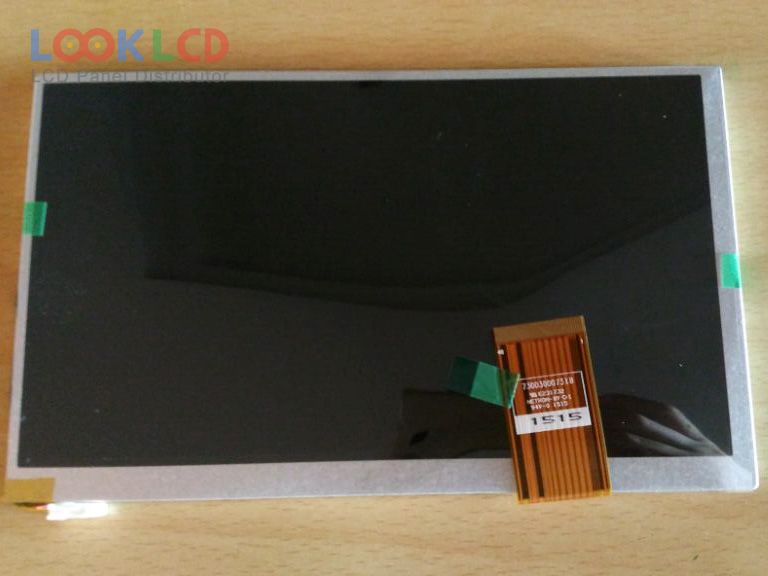

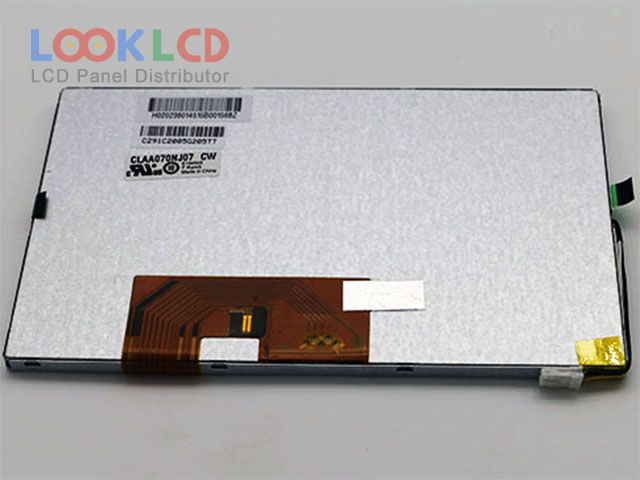

| Varenummer | CLAA070NJ07CW |
| Mærke | CPT |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 600 |
| CR | 800:1 |
| Farver | 262K/16.7M |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | CPT |
| panel model | CLAA070NJ07CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 154.214×85.92 mm |
| omrids | 164.9×100×6 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 600 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 80/80/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S11PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| indgangsspænding | 3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| CLAA070LC0FCT | CPT | 7.0 | 800×480 |
| CLAA070LF06CW | CPT | 7.0 | 800×480 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| CLAA070MA32BW | CPT | 7.0 | 800×600 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| C070VVN03.0 | AUO | 7.0 | 800×480 |
| DLC1210EIG | Other | 12.1 | 1024×768 |
| HSD080IFW1-A00 | HannStar | 8.0 | 1024×600 |
| LA080WV4-SD03 | LG Display | 8.0 | 800×480 |
| LB048Q01-TD01 | LG Display | 4.8 | 240×257 |
| LB058WQ1-SD03 | LG Display | 5.8 | 400×240 |
| LQ042B5DG02 | SHARP | 4.2 | 400×96 |
| LQ070T5DG30 | SHARP | 7.0 | |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
