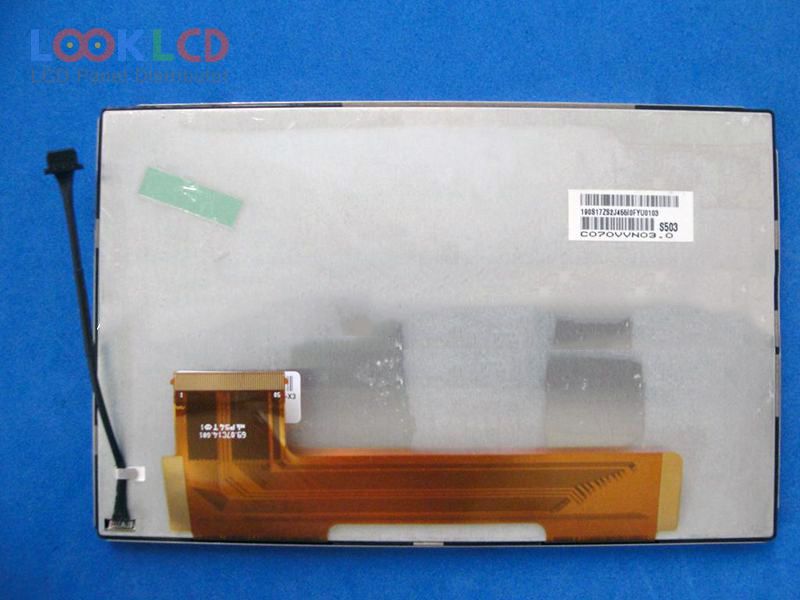

| Varenummer | C070VVN03.0 |
| Mærke | AUO |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | C070VVN03.0 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | AMVA, Normally Black, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 164.55×105.01×6.98 mm |
| overflade | |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 15/25 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| indgangsspænding | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansøgning | CNS |
