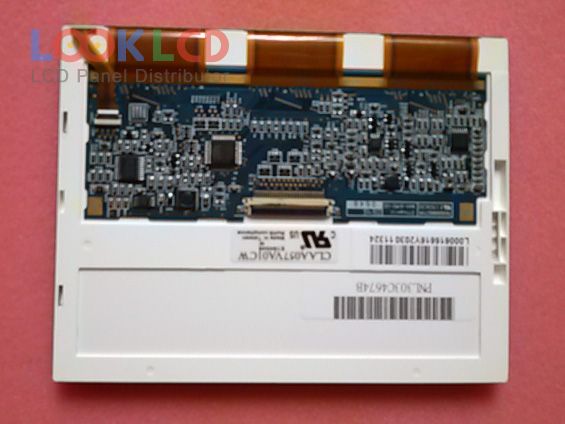

| Varenummer | CLAA057VA01CW |
| Mærke | CPT |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 220 |
| CR | 300:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA057VA01CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 116.16×87.12 mm |
| omrids | 127×98.43×6.9 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 220 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193150% |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | IA |
| CLAA050JA01CT | CPT | 5.0 | 480×272 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| CLAA057VA01CW | CPT | 5.7 | 640×480 |
| CLAA057VA02CW | CPT | 5.7 | 640×480 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| CLAA057VC01CW | CPT | 5.7 | 640×480 |
| G057VTN01.1 | AUO | 5.7 | 640×480 |
| KG057QV1CA-G000 | Kyocera | 5.7 | 320×240 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| DMF50773NF-SLY | Kyocera | 5.4 | 240×128 |
| G104VN01 V1 | AUO | 10.4 | 640×480 |
| LB064V02-A1 | LG Display | 6.4 | 640×480 |
| LMG5278XUFC-00T | KOE | 9.4 | 640×480 |
| LQ070Y1LG12 | SHARP | 7.0 | 800×480 |
| LQ9D168K | SHARP | 8.4 | 640×480 |
| LQ9D340 | SHARP | 8.4 | 640×480 |
| MD480L640PG4 | Panasonic | 10.4 | 640×480 |
| NL12876BC26-28 | NLT | 15.3 | 1280×768 |
| OEL9M0078-R-E | Other | 1.45 | 132×16 |
