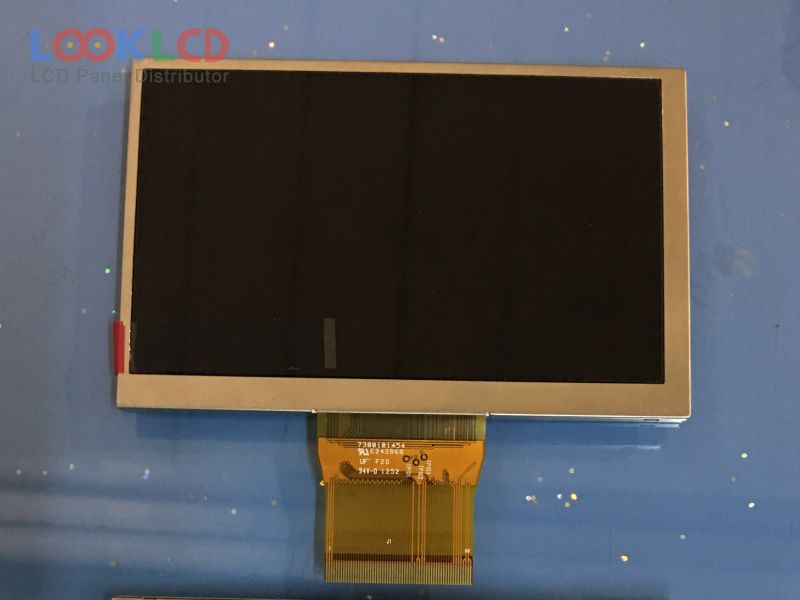

| Varenummer | CLAA050LA0ACW |
| Mærke | CPT |
| Størrelse | 5.0 |
| Ansøgning | PND |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 500 |
| CR | 500:1 |
| Farver | 16.2M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA050LA0ACW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 108×64.8 mm |
| omrids | 118.5×77.5×3.1 mm |
| overflade | Hard coating |
| lysstyrke | 500 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.2M (6-bit + FRC), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S6PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 60 pins |
| indgangsspænding | 3.3/18.0/-6.0V (Typ.)(VDD/VGH/VGL) |
| Ansøgning | PND |
| A050FW03 V2 | AUO | 5.0 | 480×272 |
| CLAA050JA01CT | CPT | 5.0 | 480×272 |
| CLAA050LA0ACW | CPT | 5.0 | 800×480 |
| CLAA057VA01CW | CPT | 5.7 | 640×480 |
| CLAA057VA02CW | CPT | 5.7 | 640×480 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| CLAA057VC01CW | CPT | 5.7 | 640×480 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| LH500WF1-SD02 | LG Display | 5.0 | 1080×1920 |
| PD050VX2 | E Ink | 5.0 | 480×640 |
| 990000475 | TPO | 4.3 | 800×480 |
| CLAA048LA0BCW | CPT | 4.8 | 800×480 |
| DLC0430LZG-T | Other | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LMS430HF18 | Samsung | 4.3 | 480×272 |
| LMS480JC01 | Samsung | 4.8 | 1024×600 |
| LTE480WV-F01 | Samsung | 4.8 | 800×480 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| TM043NDH02 | Tianma | 4.3 | 480×272 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
