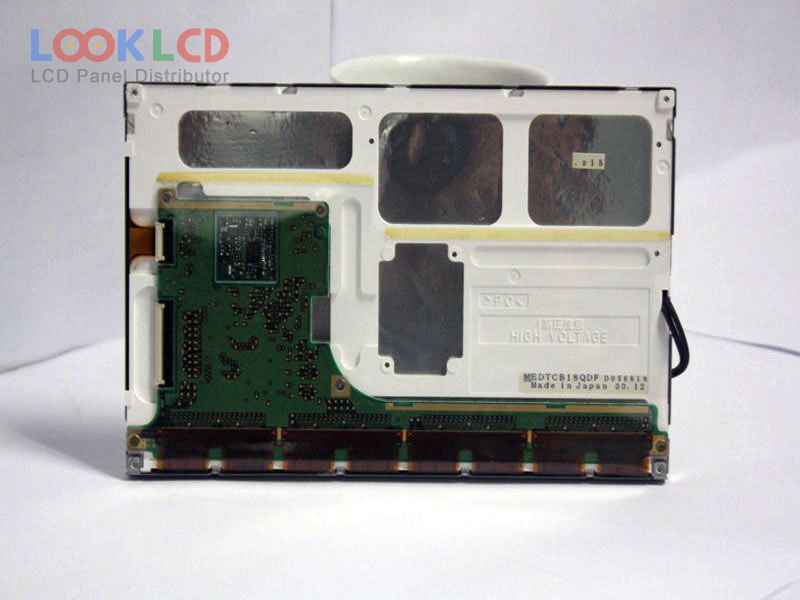

| Varenummer | EDTCB18QEF |
| Mærke | TOSHIBA |
| Størrelse | 7.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 150:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | Toshiba Matsushita |
| panel model | EDTCB18QEF |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 152.4×91.44 mm |
| omrids | 171×109.5×11.5 mm |
| overflade | Antiglare |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 150:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 20/36 (Typ.)(Tr/Td) |
| synsvinkel | 60/60/30/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.)(VDD) |
| Ansøgning | CNS |
| BA070WS1-200 | BOE | 7.0 | 1024×600 |
| C070VTN02.0 | AUO | 7.0 | 800×480 |
| CLAA070LC05CW | CPT | 7.0 | 800×480 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| COM70T7M17ZLC | ORTUSTECH | 7.0 | 800×480 |
| EDTCB18QEF | TOSHIBA | 7.0 | 800×480 |
| EDTCB29QB0 | Panasonic | 10.4 | 800×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| LA070WV1-TD03 | LG Display | 7.0 | 800×480 |
| LTL070AL01-L01 | Samsung | 7.0 | 1280×800 |
| A070VW01 V1 | AUO | 7.0 | 800×480 |
| AV094Z9M-N10 | BOE | 9.4 | 1920×480 |
| C070VW01 V0 | AUO | 7.0 | 800×480 |
| CLAA061LA0DCW | CPT | 6.1 | 800×480 |
| G080Y1-T01 | Innolux | 8.0 | 800×480 |
| LA080WV3-SD01 | LG Display | 8.0 | 800×480 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LB040Q02-TD02 | LG Display | 4.0 | 320×240 |
| LQ042B5DG02 | SHARP | 4.2 | 400×96 |
| TX15D02VM0CAA | KOE | 5.8 | 400×240 |
