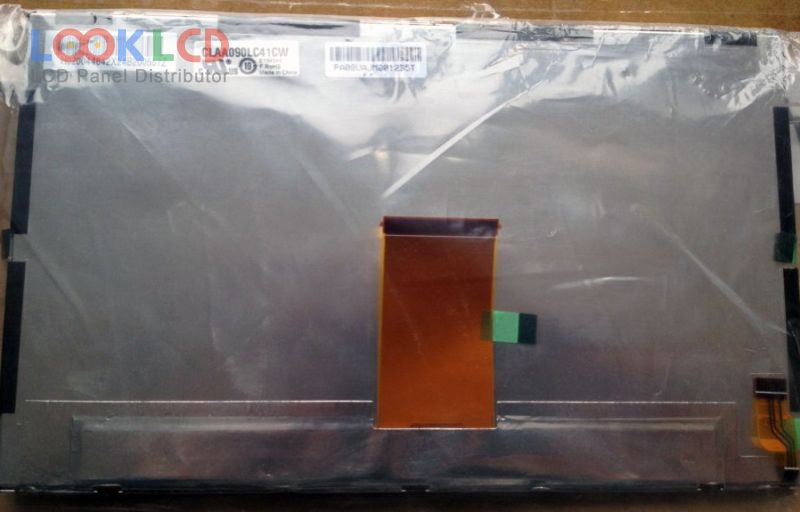

| Varenummer | CLAA090LC41CW |
| Mærke | CPT |
| Størrelse | 9.0 |
| Ansøgning | CNS |
| Løsning | 800×480 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 400:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | CPT |
| panel model | CLAA090LC41CW |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 9.0 inch |
| løsning | 800(RGB)×480 , WVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 198×112.08 mm |
| omrids | 210.7×126.8×6 mm |
| overflade | Antiglare, Hard coating (3H) |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 400:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193170% |
| responstid | 10/15 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 8S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| indgangsspænding | 3.3/11.3/18.0/-6.0V (Typ.)(VCC/VDDA/VGH/VGL) |
| Ansøgning | CNS |
