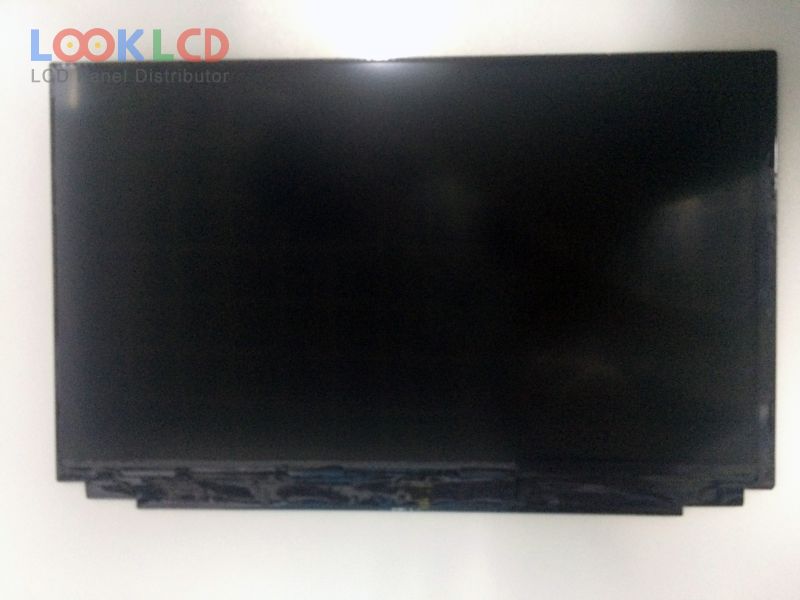

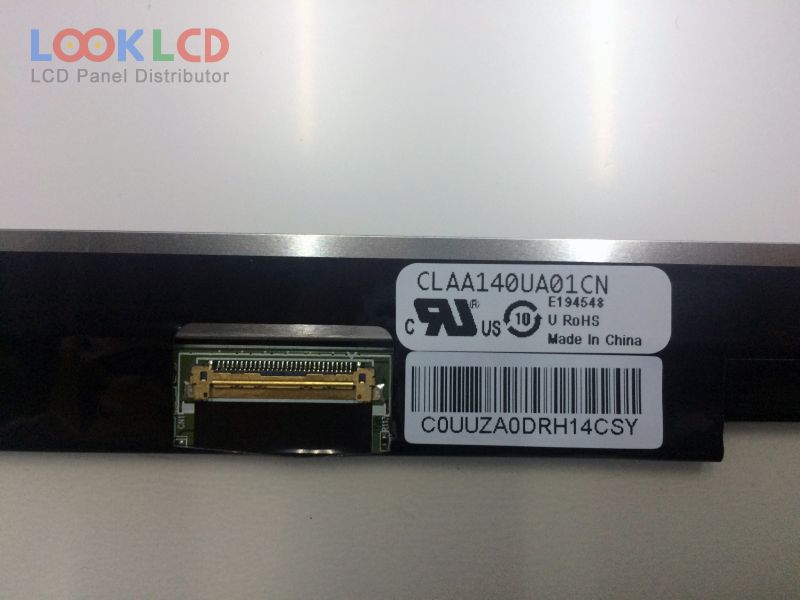

| Varenummer | CLAA140UA01 CN |
| Mærke | CPT |
| Størrelse | 14.0 |
| Ansøgning | NBPC |
| Løsning | 1600×900 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | eDP |
| panel mærke | CPT |
| panel model | CLAA140UA01 CN |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 14.0 inch |
| løsning | 1600(RGB)×900 , HD+ |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 309.6×174.15 mm |
| omrids | 323.46×204.12 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| overflade | Antiglare |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193145% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | eDP (2 Lanes), 30 pins |
| indgangsspænding | 3.3V (Typ.) |
| Ansøgning | NBPC |
| B140HTN01.3 | AUO | 14.0 | 1920×1080 |
| CLAA140UA01 CN | CPT | 14.0 | 1600×900 |
| CLAA140WA01 | CPT | 14.0 | 1280×768 |
| CLAA140WB01A | CPT | 14.0 | 1366×768 |
| CLAA140WB11A | CPT | 14.0 | 1366×768 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| LQ140Z1JW01 | SHARP | 14.0 | 3200×1800 |
| LTN140AT21-T01 | Samsung | 14.0 | 1366×768 |
| M140NWR1 R0 | IVO | 14.0 | 1366×768 |
| N140FGE-EA2 | Innolux | 14.0 | 1600×900 |
| B140XTN03.5 | AUO | 14.0 | 1366×768 |
| B156HW03 V0 | AUO | 15.6 | 1920×1080 |
| LP133WH1-TLA3 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LP141WP2-TLA2 | LG Display | 14.1 | 1440×900 |
| LP154W02-TL06 | LG Display | 15.4 | 1680×1050 |
| LTD133EV2F | TOSHIBA | 13.3 | 1280×800 |
| LTN154X3-L03 | Samsung | 15.4 | 1280×800 |
| LTN160HT03-N01 | Samsung | 16.0 | 1920×1080 |
| M140NWR2 R1 | IVO | 14.0 | 1366×768 |
