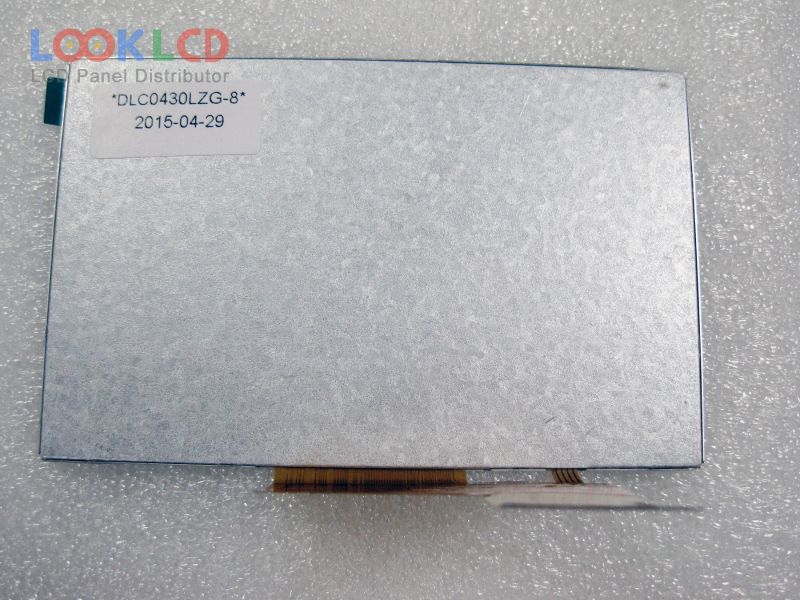

| Varenummer | DLC0430LZG-8 |
| Mærke | Other |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 520 |
| CR | 500:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | DLC |
| panel model | DLC0430LZG-8 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2×3.2 mm |
| overflade | |
| lysstyrke | 520 cd/m² (Typ.) |
| kontrastforhold | 500:1 (Typ.) |
| vise farver | 16.7M (6-bit + Hi-FRC), CIE193150% |
| responstid | 20 (Typ.)(Tr+Td) |
| synsvinkel | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 5S2PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3V (Typ.) |
