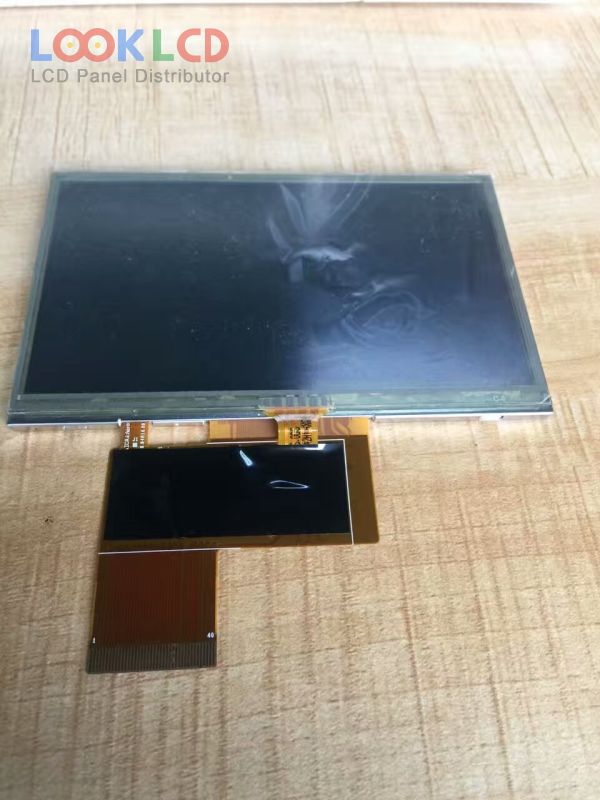

| Varenummer | A043FW02 V8 |
| Mærke | AUO |
| Størrelse | 4.3 |
| Ansøgning | PND |
| Løsning | 480×272 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 300:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | AUO |
| panel model | A043FW02 V8 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 4.3 inch |
| løsning | 480(RGB)×272 , WQVGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 95.04×53.856 mm |
| omrids | 105.5×67.2 mm |
| overflade | Antiglare (Haze 8%), Hard coating (3H) |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 300:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 15/20 (Typ.)(Tr/Td) |
| synsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 10S1PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| indgangsspænding | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| Ansøgning | PND |
| 43WQW3T | SII | 4.3 | 480×272 |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| A043FW02 V8 | AUO | 4.3 | 480×272 |
| A043FW03 V2 | AUO | 4.3 | 480×272 |
| DLC0430LZG-8 | Other | 4.3 | 480×272 |
| G043FTT01.0 | AUO | 4.3 | 480×272 |
| H430VL02 V1 | AUO | 4.3 | 480×800 |
| LMS430HF18 | Samsung | 4.3 | 480×272 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| NL4827HC19-05A | NLT | 4.3 | 480×272 |
| 35QVW1H | SII | 3.5 | 320×240 |
| 43WVF0H | SII | 4.3 | 800×480 |
| 990000475 | TPO | 4.3 | 800×480 |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| AT043TN25 V.2 | Innolux | 4.3 | 480×272 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LB050WQ3-TD04 | LG Display | 5.0 | 480×272 |
| LMS480JC01 | Samsung | 4.8 | 1024×600 |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
