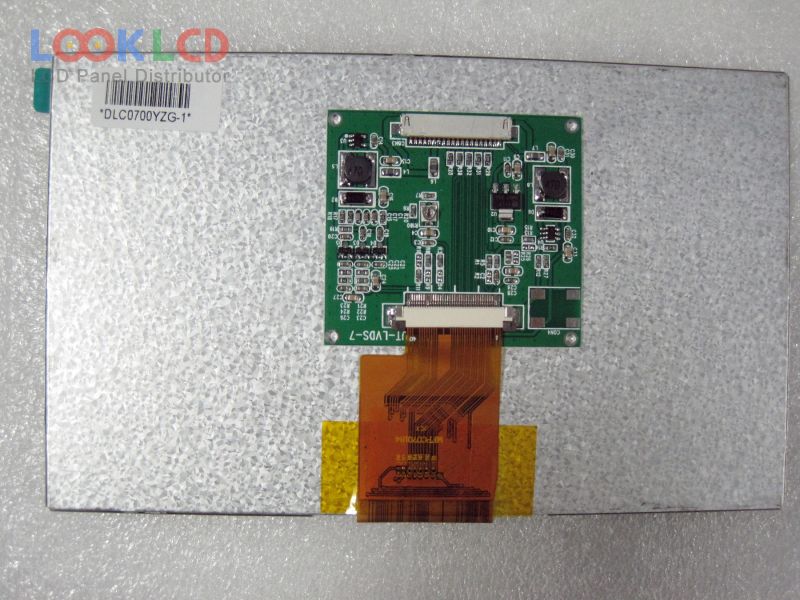

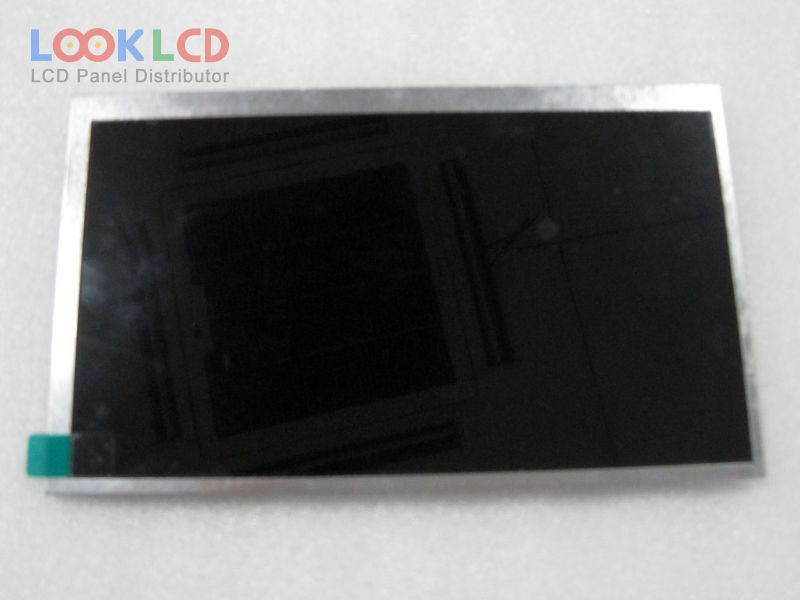

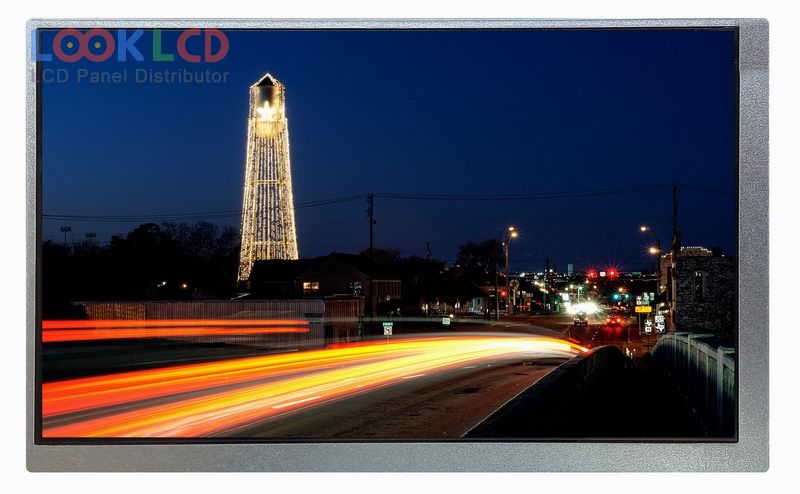

| Varenummer | DLC0700YZG-1 |
| Mærke | Other |
| Størrelse | 7.0 |
| Ansøgning | IA |
| Løsning | 1024×600 |
| Sammensætning | LCM |
| Lysstyrke | 250 |
| CR | 800:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | LVDS |
| panel mærke | DLC |
| panel model | DLC0700YZG-1 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 1024(RGB)×600 , WSVGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 154.21×85.92 mm |
| omrids | 164.9×100×5.9 mm |
| overflade | |
| lysstyrke | 250 cd/m² (Typ.) |
| kontrastforhold | 800:1 (Typ.) |
| vise farver | 262K (6-bit), CIE193152% |
| responstid | 25 (Typ.)(Tr+Td) |
| synsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lampe type | 3S7PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 20 pins |
| indgangsspænding | 5.0V (Typ.) |
| Ansøgning | IA |
