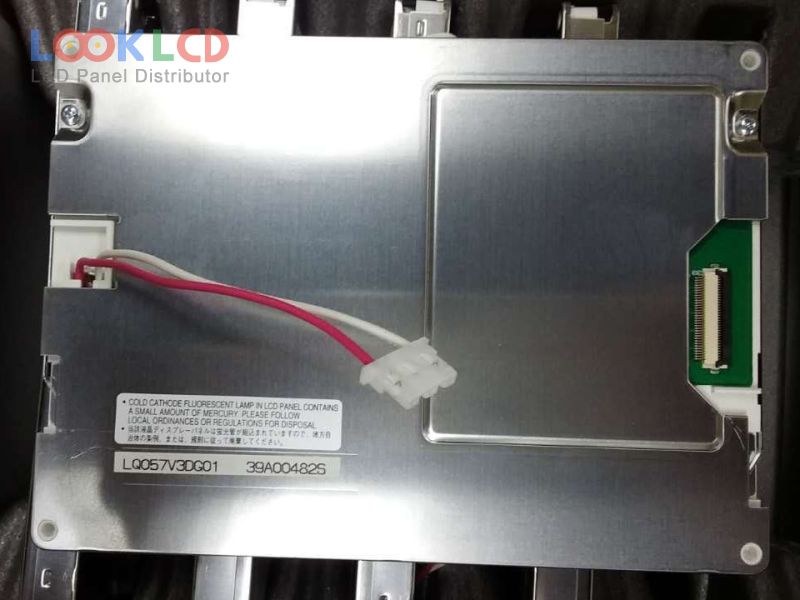

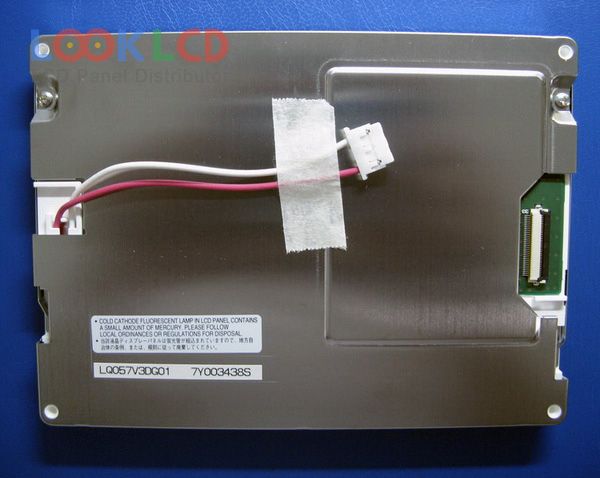

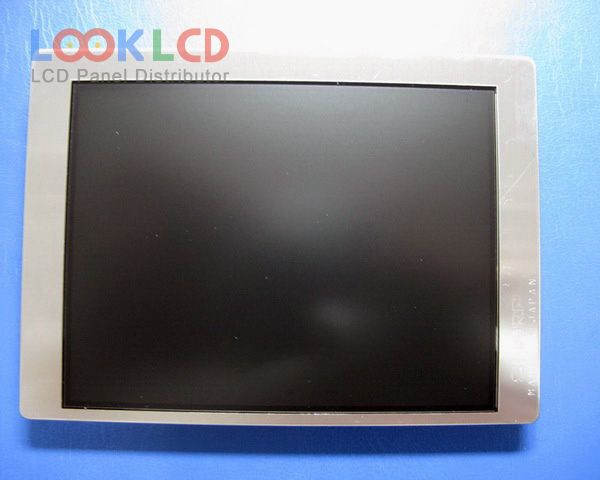

| Varenummer | LQ057V3DG01 |
| Mærke | SHARP |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | CCFL |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ057V3DG01 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 144×104.6×13.5 mm |
| overflade | Antiglare |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 8/21 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/70 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 33 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | IA |
| C555001 | SII | 5.7 | 320×240 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| LQ057Q3DC02 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC03 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC12 | SHARP | 5.7 | 320×240 |
| LQ057Q3DG02 | SHARP | 5.7 | 320×240 |
| LQ057V3DG01 | SHARP | 5.7 | 640×480 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| TM057KDH01 | Tianma | 5.7 | 320×240 |
| EG4401S-ER | Epson | 5.3 | 256×128 |
| EL320.240.36 LK | Lumineq | 5.7 | 320×240 |
| G101STN01.0 | AUO | 10.1 | 1024×600 |
| G6481L-FF | CITIZEN | 10.4 | 640×480 |
| LM64P10 | SHARP | 7.2 | 640×480 |
| LTM09C015A | TOSHIBA | 9.4 | 640×480 |
| NL6448AC33-29 | NLT | 10.4 | 640×480 |
| PA064DS5 | E Ink | 6.4 | 320×234 |
| RGS27128064YW000 | RiTdisplay | 2.7 | 128×64 |
| TX18D37VM0AQA | KOE | 7.0 | 800×480 |
