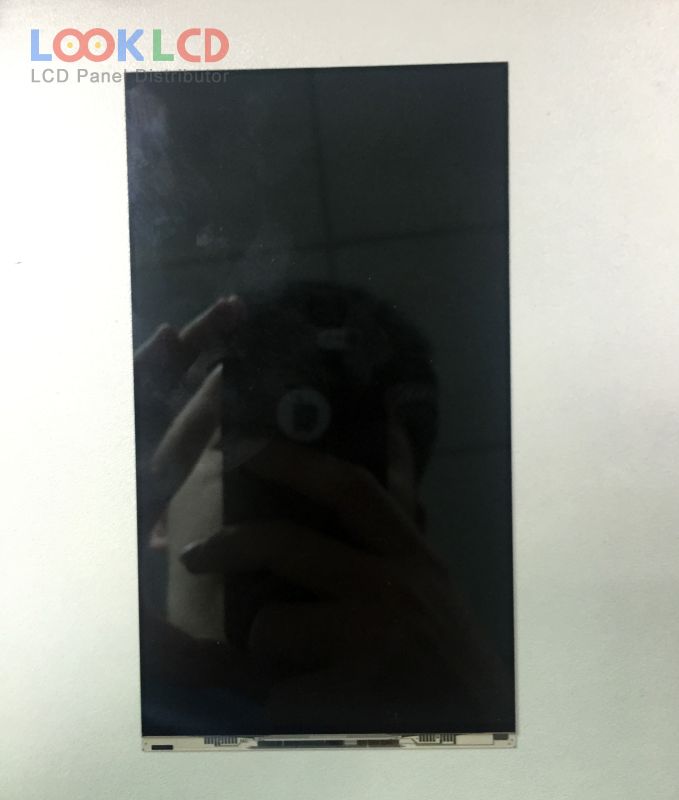

| Varenummer | H495TAN01.1 |
| Mærke | AUO |
| Størrelse | 5.0 |
| Ansøgning | MPH |
| Løsning | 720×1280 |
| Sammensætning | CELL |
| Lysstyrke | 0 |
| CR | 900:1 |
| Farver | 16.7M |
| Baggrundsbelysning | No B/L |
| Interface | |
| panel mærke | AUO |
| panel model | H495TAN01.1 |
| paneltype | a-Si TFT-LCD , CELL |
| panelstørrelse | 5.0 inch |
| løsning | 720(RGB)×1280 , WXGA |
| visningstilstand | AHVA, Normally Black, Transmissive |
| aktivt område | 61.688×109.632 mm |
| omrids | 63.67×115.85×0.3 mm |
| overflade | |
| glas dybde | 0.15+0.15 mm |
| transmissivitet | 3.26% (Typ.)(with Polarizer) |
| kontrastforhold | 900:1 (Typ.) |
| vise farver | 16.7M (8-bit), CIE193194% |
| responstid | 35 (Max.)(Tr+Td) |
| synsvinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| driver ic | COG Suggest HX8394-D21, N35521-DPAU, N35521S-DP8AU, OTM1284A-C6, OTM1287A-C8, R61318, RM68200 |
| Ansøgning | MPH |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| A050VVN01.0 | AUO | 5.0 | 480×800 |
| AMS495QA01 | Samsung | 5.0 | 960×544 |
| H495TAN01.1 | AUO | 5.0 | 720×1280 |
| LM5Q321 | SHARP | 5.0 | 320×240 |
| LMS500HF01 | Samsung | 5.0 | 480×272 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
| P50AD4 | E Ink | 5.0 | 320×234 |
| TM050NDH01 | Tianma | 5.0 | 480×272 |
| BB050HDG-T40 | BOE | 5.0 | 720×1280 |
| CLAN053WA31 2AX | CPT | 5.3 | 720×1280 |
| DX12D100VM0EAA | JDI | 4.7 | 720×1280 |
| HSD015F4N2-B | HannStar | 1.5 | 128×128 |
| HVA37WV1-M02 | HYDIS | 3.7 | 480×800 |
| LH500X01-SD01 | LG Display | 5.0 | 768×1024 |
| LMS220GF08 | Samsung | 2.2 | 240×320 |
| LQ055K3SX02 | SHARP | 5.5 | 720×1280 |
| TM022HDHT1-00 | Tianma | 2.2 | 240×320 |
| TM032PDZ17 | Tianma | 3.2 | 320×480 |
