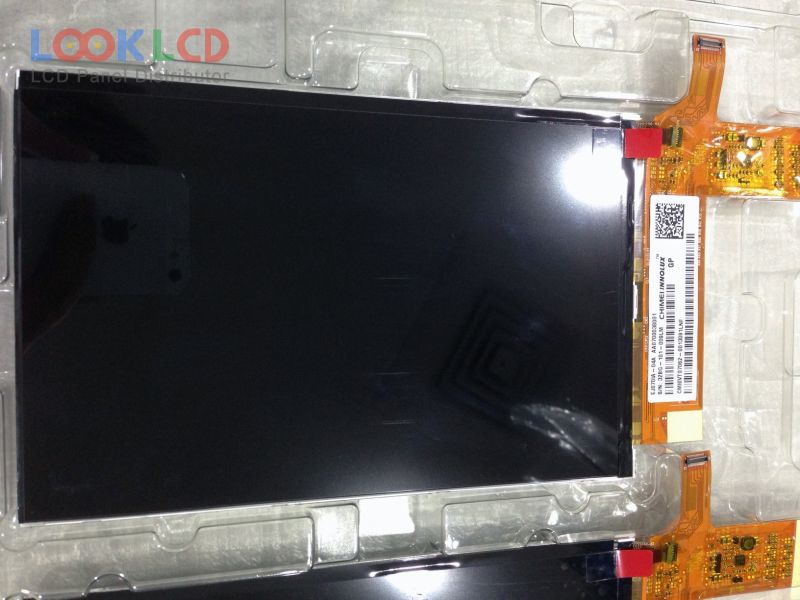

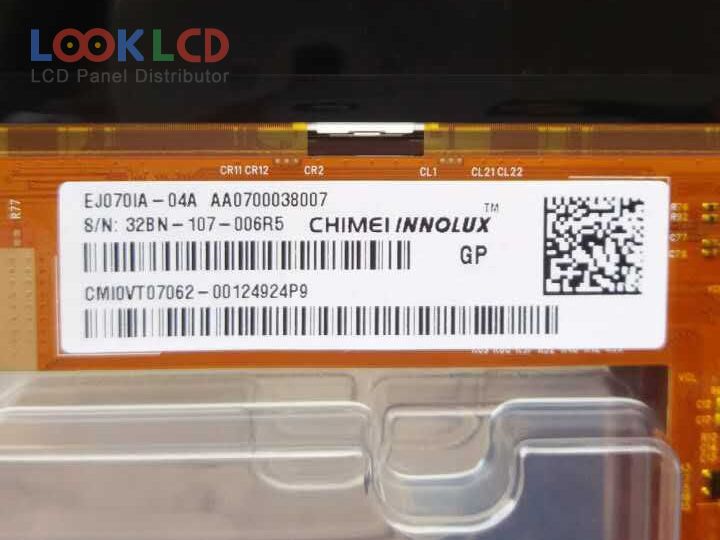

| Varenummer | EJ070IA-04A |
| Mærke | Innolux |
| Størrelse | 7.0 |
| Ansøgning | PAD |
| Løsning | 800×1280 |
| Sammensætning | LCM |
| Lysstyrke | 450 |
| CR | 1000:1 |
| Farver | 16.7M |
| Baggrundsbelysning | WLED |
| Interface | MIPI |
| panel mærke | CHIMEI INNOLUX |
| panel model | EJ070IA-04A |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 7.0 inch |
| løsning | 800(RGB)×1280 , WXGA |
| visningstilstand | IPS, Normally Black, Transmissive |
| aktivt område | 94.2×150.72 mm |
| omrids | 104.32×161.67×3.8 mm |
| overflade | Hard coating |
| lysstyrke | 450 cd/m² (Typ.) |
| kontrastforhold | 1000:1 (Typ.) |
| vise farver | 16.7M (8-bit) |
| responstid | 30 (Typ.)(Tr+Td) |
| synsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 50Hz |
| lampe type | WLED |
| signal interface | MIPI (4 data lanes) |
| indgangsspænding | 1.8/3.3V (Typ.)(VCC/VDD) |
| Ansøgning | PAD |
| 70WVW2T | SII | 7.0 | 800×480 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| C070FW02 V0 | AUO | 7.0 | 480×234 |
| EJ070IA-04A | Innolux | 7.0 | 800×1280 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| G070VTT01.0 | AUO | 7.0 | 800×480 |
| LQ070T5AR01 | SHARP | 7.0 | 480×234 |
| NL8048BC19-02 | NLT | 7.0 | 800×480 |
| B101EW05 V0 | AUO | 10.1 | 1280×800 |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| B116XAT03.1 | AUO | 11.6 | 1366×768 |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| HSD101PWW2-A01 | HannStar | 10.1 | 1280×800 |
| LP097X02-SLA3 | LG Display | 9.7 | 1024×768 |
| LP125WH2-SPT1 | LG Display | 12.5 | 1366×768 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| LT101MB02000 | JDI | 10.1 | 1920×1200 |
| LTL101DL03-T01 | Samsung | 10.1 | 2560×1600 |
