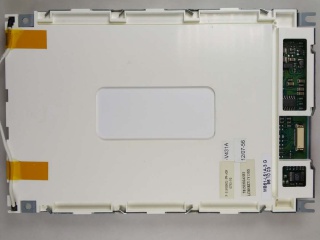

| Varenummer | F-51900NCU-FW-ADN |
| Mærke | OPTREX |
| Størrelse | 5.7 |
| Ansøgning | Industrial |
| Løsning | 320×240 |
| Sammensætning | CSTN-LCD, LCM |
| Lysstyrke | |
| CR | 25:1 |
| Farver | Color |
| Baggrundsbelysning | CCFL |
| Interface | Parallel |
| mærke | OPTREX |
| model | F-51900NCU-FW-ADN |
| diagonal størrelse | 5.7 inch |
| type | CSTN-LCD, LCM |
| pixel format | 320(RGB)×240 [QVGA] 70PPI |
| konfiguration | RGB Vertical Stripe |
| aktivt område | 115.2(H)×86.4(V) mm |
| omrids dim. | 168(H)×111(V) ×7.4(D) mm |
| luminans | 120 cd/m² (Typ.) |
| kontrastforhold | 25:1 (Typ.) (TM) |
| visningsretning | 12 o'clock |
| responstid | 300/100 (Typ.)(Tr/Td) |
| synsvinkel | - |
| driftstilstand | STN, Normally Black, Transmissive |
| støtte farve | Color |
| lyskilde | CCFL , 20K hours , W/O Driver |
| vægt | 234g (Max.) |
| designet til | Industrial |
| billedhastighed | 70Hz |
| berøringspanel | Without |
| interface type | Parallel Data (1ch, 8-bit) |
| Strømforsyning | 3.0/5.0V (Typ.)(VCC) |
| miljø | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| AA057QD01 | Mitsubishi | 5.7 | 320×240 |
| C555001 | SII | 5.7 | 320×240 |
| EL320.240.36 AGL | Lumineq | 5.7 | 320×240 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| ER0570A2NC6 | EDT | 5.7 | 320×240 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| SP14Q001-X | KOE | 5.7 | 320×240 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
| TX14D11VM1CAA | KOE | 5.7 | 320×240 |
| TX14D22VM1BAA | KOE | 5.7 | 320×240 |
