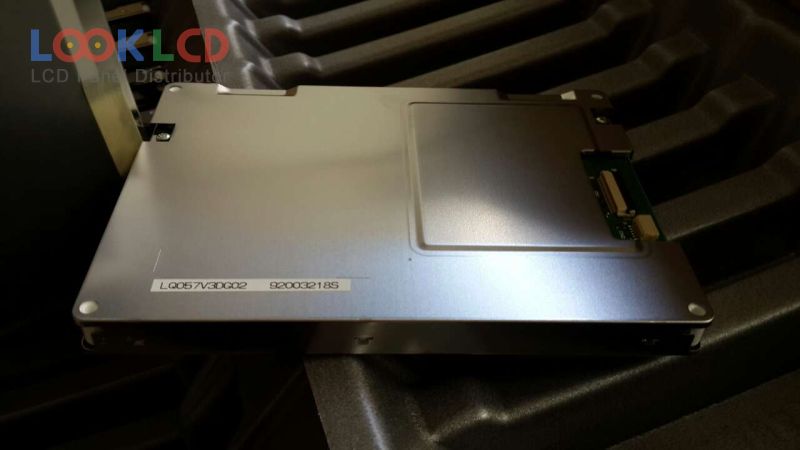

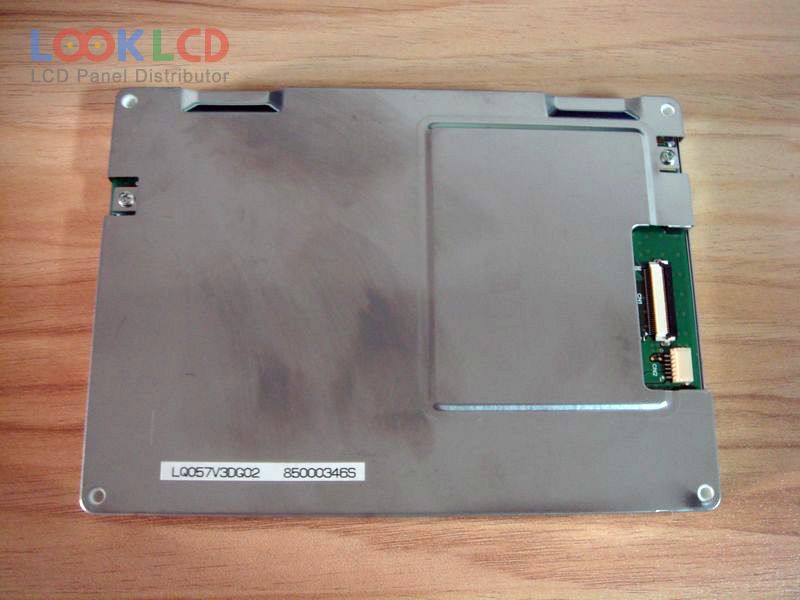

| Varenummer | LQ057V3DG02 |
| Mærke | SHARP |
| Størrelse | 5.7 |
| Ansøgning | IA |
| Løsning | 640×480 |
| Sammensætning | LCM |
| Lysstyrke | 400 |
| CR | 600:1 |
| Farver | 262K |
| Baggrundsbelysning | WLED |
| Interface | TTL |
| panel mærke | SHARP |
| panel model | LQ057V3DG02 |
| paneltype | a-Si TFT-LCD , LCM |
| panelstørrelse | 5.7 inch |
| løsning | 640(RGB)×480 , VGA |
| visningstilstand | TN, Normally White, Transmissive |
| aktivt område | 115.2×86.4 mm |
| omrids | 144×104.6×13.5 mm |
| overflade | Antiglare |
| lysstyrke | 400 cd/m² (Typ.) |
| kontrastforhold | 600:1 (Typ.) |
| vise farver | 262K (6-bit) |
| responstid | 8/21 (Typ.)(Tr/Td) |
| synsvinkel | 80/80/80/70 (Typ.)(CR≥5)(L/R/U/D) |
| lampe type | WLEDEmbedded (LED Driver) |
| signal interface | Parallel RGB (1 ch, 6-bit), 33 pins |
| indgangsspænding | 3.3V (Typ.)(VCC) |
| Ansøgning | IA |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| LM057QB1T09 | SHARP | 5.7 | 320×240 |
| LQ057AC111 | Other | 5.7 | 320×240 |
| LQ057Q3DC02 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC03 | SHARP | 5.7 | 320×240 |
| LQ057Q3DC12 | SHARP | 5.7 | 320×240 |
| LQ057Q3DG02 | SHARP | 5.7 | 320×240 |
| LQ057V3DG01 | SHARP | 5.7 | 640×480 |
| LQ057V3DG02 | SHARP | 5.7 | 640×480 |
| LQ057V3LG11 | SHARP | 5.7 | 640×480 |
| AA065VE11ADA11 | Mitsubishi | 6.5 | 640×480 |
| DMF5005N-EB | Kyocera | 5.2 | 240×64 |
| EL160.80.50 IN LC CC | Lumineq | 3.5 | 160×80 |
| G070VTT01.0 | AUO | 7.0 | 800×480 |
| LQ121S1LG41 | SHARP | 12.1 | 800×600 |
| LT057AA34B00 | TOSHIBA | 5.7 | 320×240 |
| LTA121C250F | TOSHIBA | 12.1 | 1024×768 |
| NL6448BC26-11 | NLT | 8.4 | 640×480 |
| NL8060BC26-11 | NLT | 10.4 | 800×600 |
| RGS32256064YH001 | RiTdisplay | 3.2 | 256×64 |
